6.3 Preparation of the machine for punching

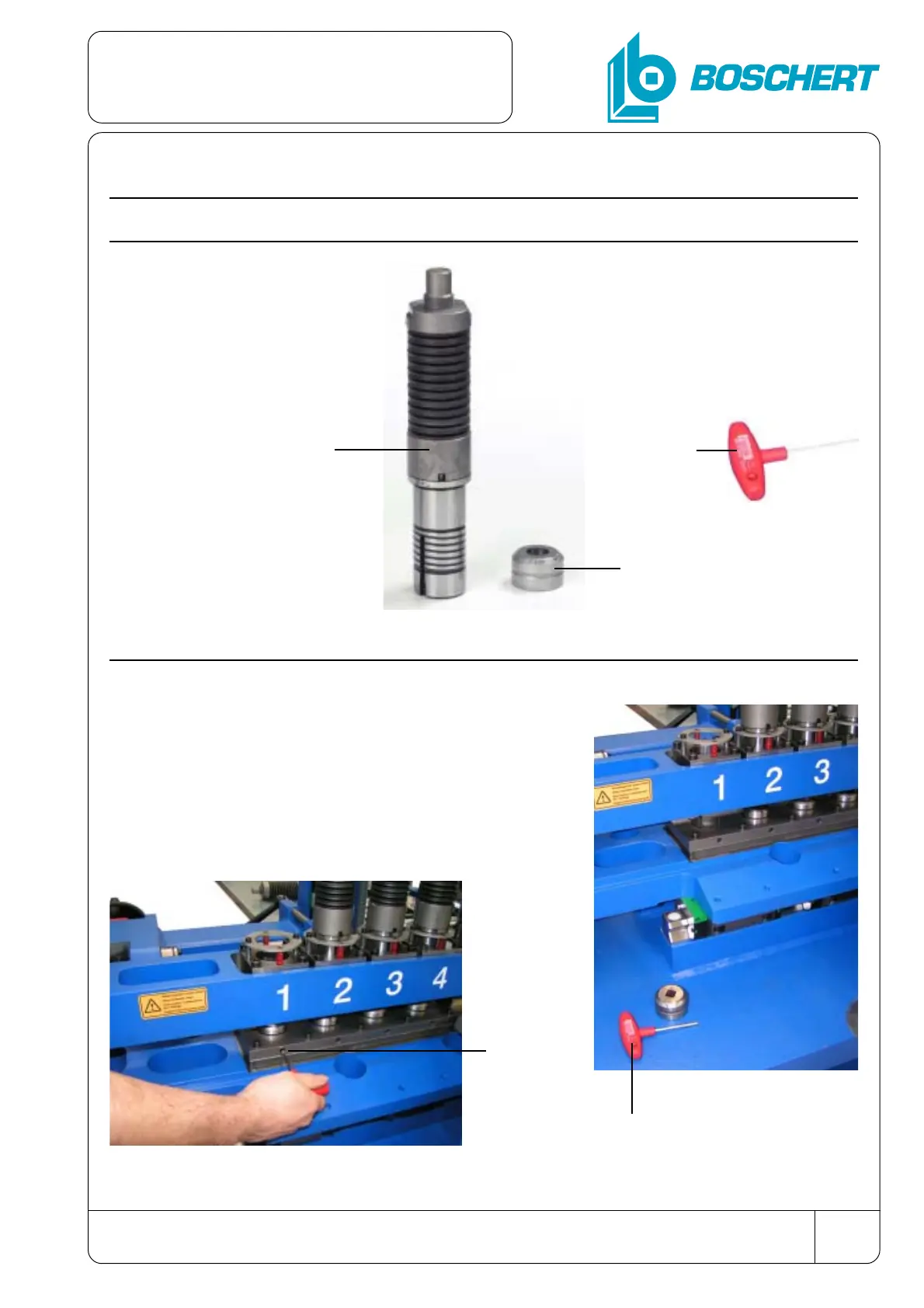

6.3.1 Providing a punching tool
punch
die
6.3.2 Insert the die
With the installation of the die it is to be made certain that
the die is inserted positionfairly into the die holder.
Subsequently, the die must by tighten by means of
straight pin (1) and socket key.
socket key
socket
key
