Commissioning
the machine

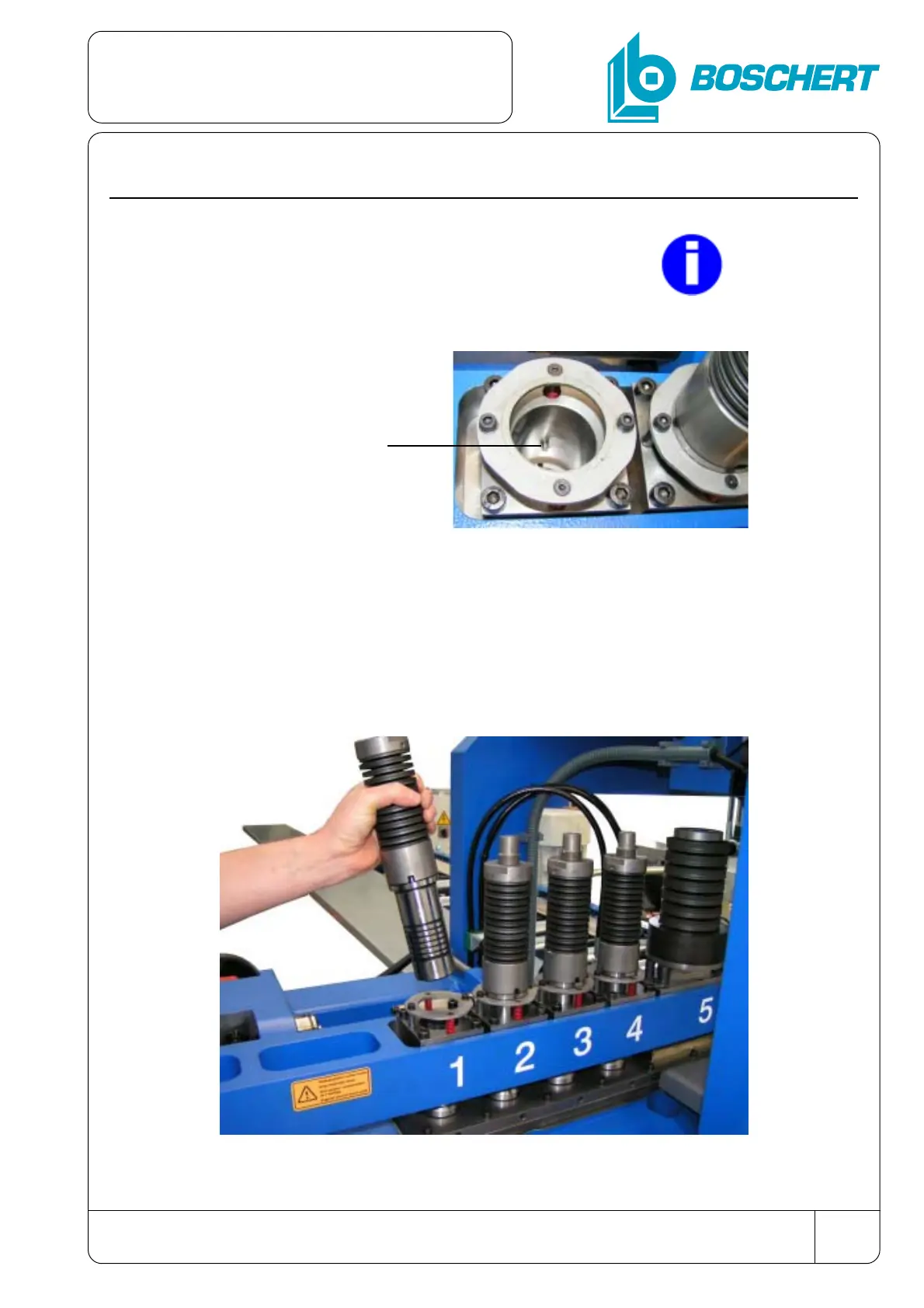

6.3.3 Installation of AMADA - Station
The punch must be inserted according to the position
of the die.
Information
lock against
rotation
- Insert punch in right position.
- The installation is possible in the angles 15°, 30° and 45°.
