Safety
Danger
Danger
The following assemblies are live in spite of
EMERGENCY-OFF:
In the control cabinet:
- the motor circuit protectors,
- the fuses,
- the contactors at the entrance side,
- the power supply,
- the control voltage is present,
- the programmable logic control.
On the machine:
- the control voltage is present.
When working on these parts, it is imperative to set
the main switch to „0“ and to secure it against
switching on.

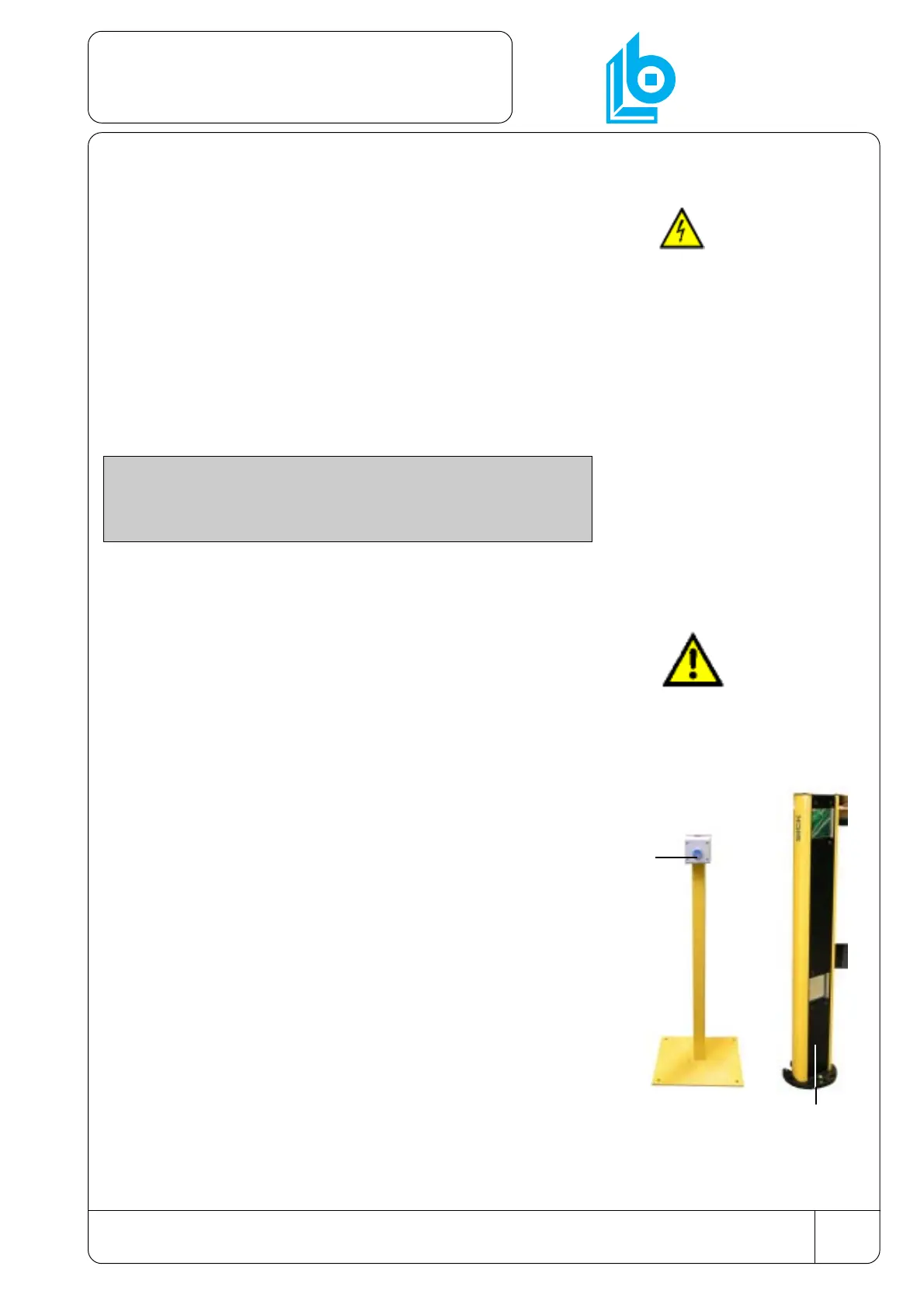

The light barrier (1)
The light barrier protects you from dangers:
- caused by the ram,
- due to the motion of the workpiece.
Always work with an active light barrier (1).
Always stay outside the light barrier.
The area between light barrier and machine is
dangerous due to workpiece motion!
You can only start the machine when the light barrier
is active.
Activate light barrier
* go out of the area between light barrier and
machine,
* press button (2) at the light barrier. (The light barrier
is activ).
The interlock switch
The die punch motion cannot be started unless the inter-
lock switch has been pressed.
