124
Using insert effects
Rev0.02
Using an expression pedal

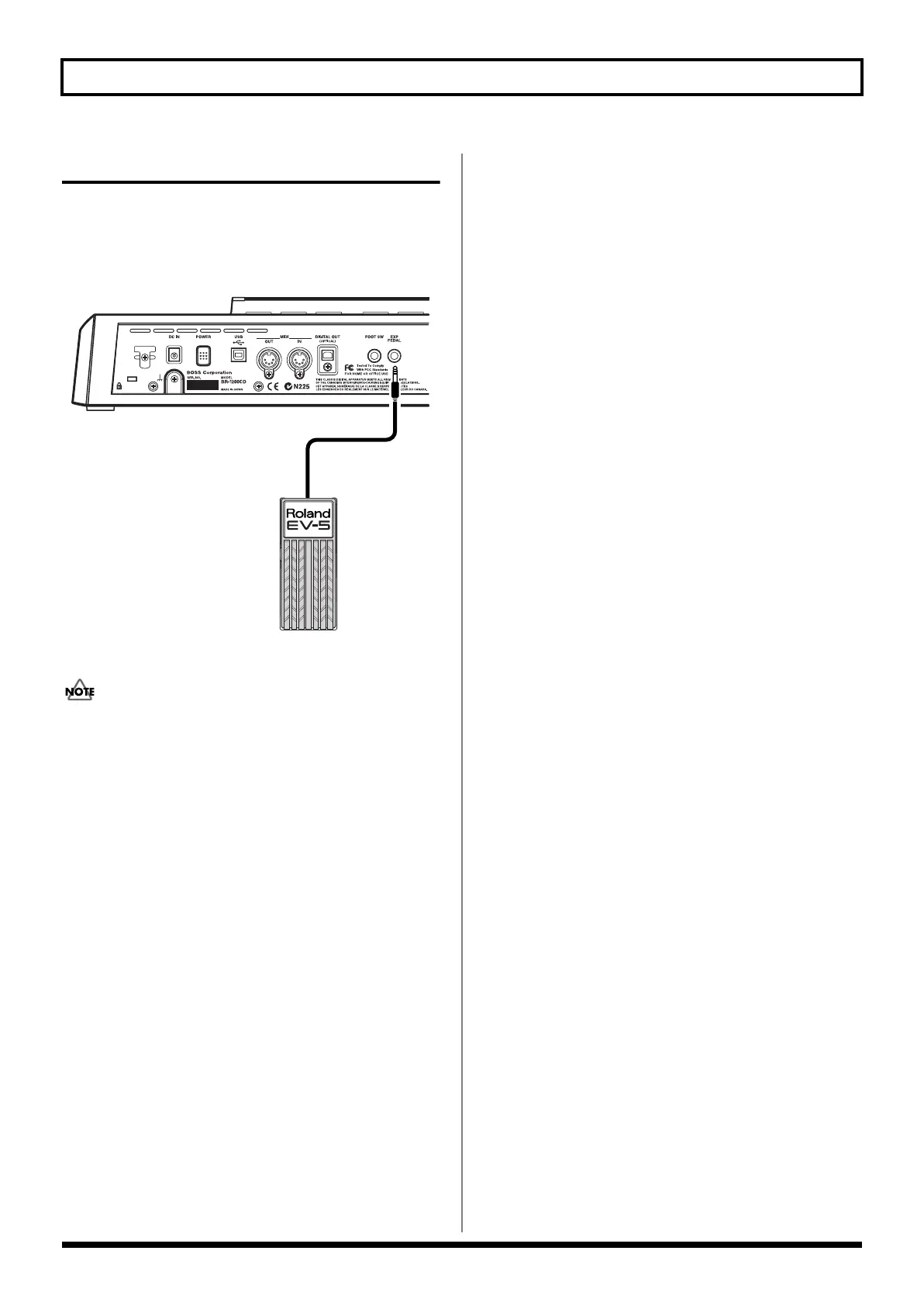

When you connect an expression pedal (such as the Roland
EV-5 or BOSS FV-500L/FV-500H) to the rear panel’s EXP
PEDAL jack, you will be able control certain effect
parameters using your feet.
fig.53-00
• It is important that you use the specified type of
expression pedal (such as the separately available
Roland EV-5 or BOSS FV-500L/FV-500H). Connection of
any other product can cause the BR-1200CD to
malfunction.
• Both the Roland EV-5 and BOSS FV-500L/FV-500H have
a minimum volume setting of 0.
Depending on effect settings, the following operations can be
carried out using an expression pedal. Refer to the indicated
pages for more detailed information regarding setting
methods.
• Wah pedal (“Wah” (p. 310))
• Volume pedal (“Foot Volume” (p. 302))
• Pitch Shifter pedal (“Pitch Shifter” (p. 306))
• Vibrato pedal (“Vibrato” (p. 310))
Expression pedal
(Roland EV-5 etc.)
