34
Rev0.02

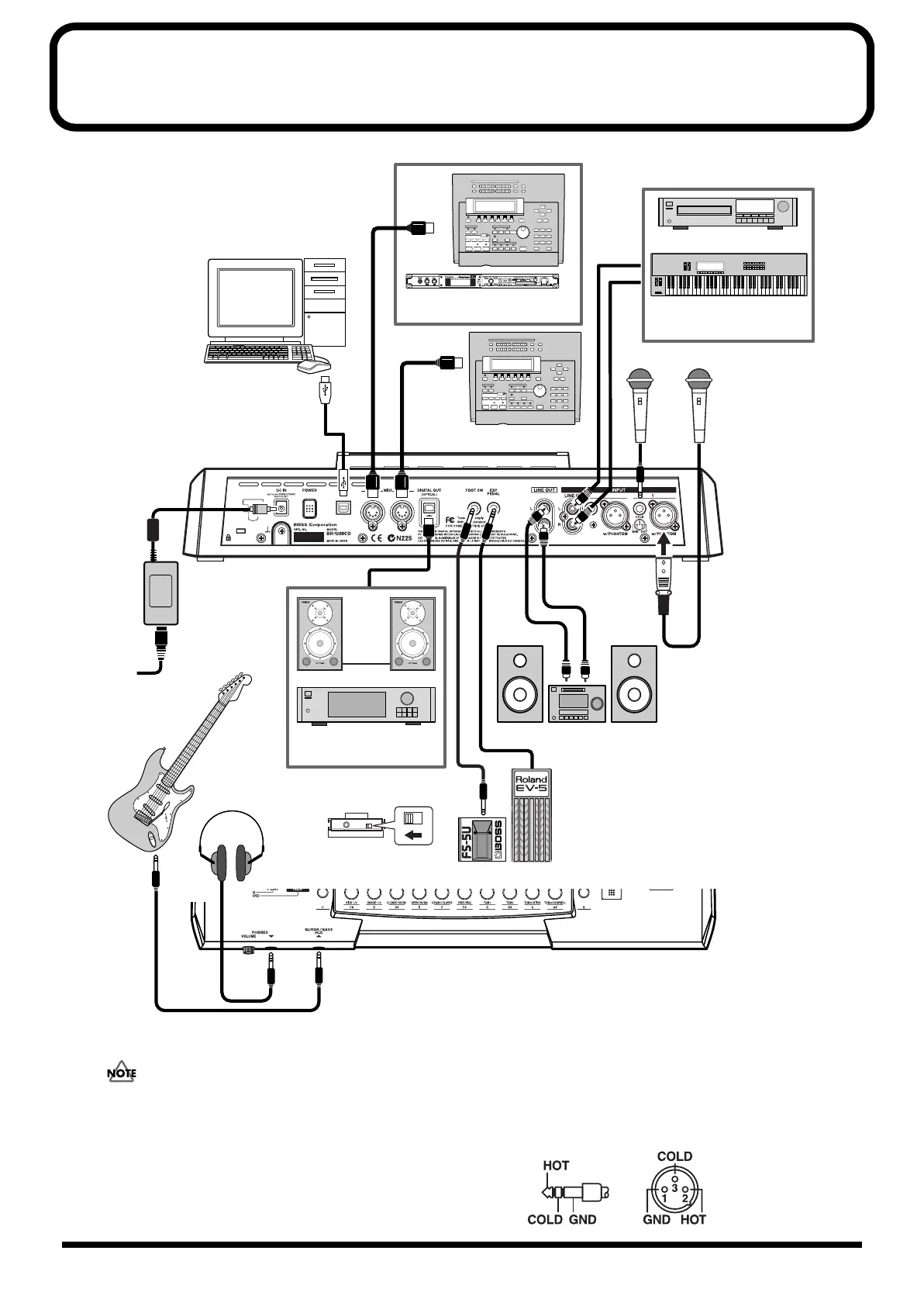

Connecting other devices
fig.07-01
To prevent malfunction and/or damage to speakers
or other devices, always turn down the volume and
turn off all devices before making any connections.
●
This instrument is equipped with balanced (XLR/TRS)
type input jacks. Wiring diagrams for these jacks are
shown below. Make connections after first checking the
wiring diagrams of other equipment you intend to
connect.
fig.XLR
CD Player, Keyboard, etc.
Guitar
or
Bass
Audio Set, etc.
Mic
Stereo
Headphones
AC Adaptor
(PSB-3U)
Foot Switch
(FS-5U etc.)
Expression Pedal
(Roland EV-5 etc.)
Computer
DS-30A/50A/90A,
Digital Amp, etc.
USB
LINE OUT
DIGITAL IN
LINE IN
MIDI Sequencer,
MIDI Sound Module, etc.
MIDI Sequencer etc.
MIDI
OUT
Set the polarity switch
as shown below.
MIDI
IN
