5.6 Top and bottom frame

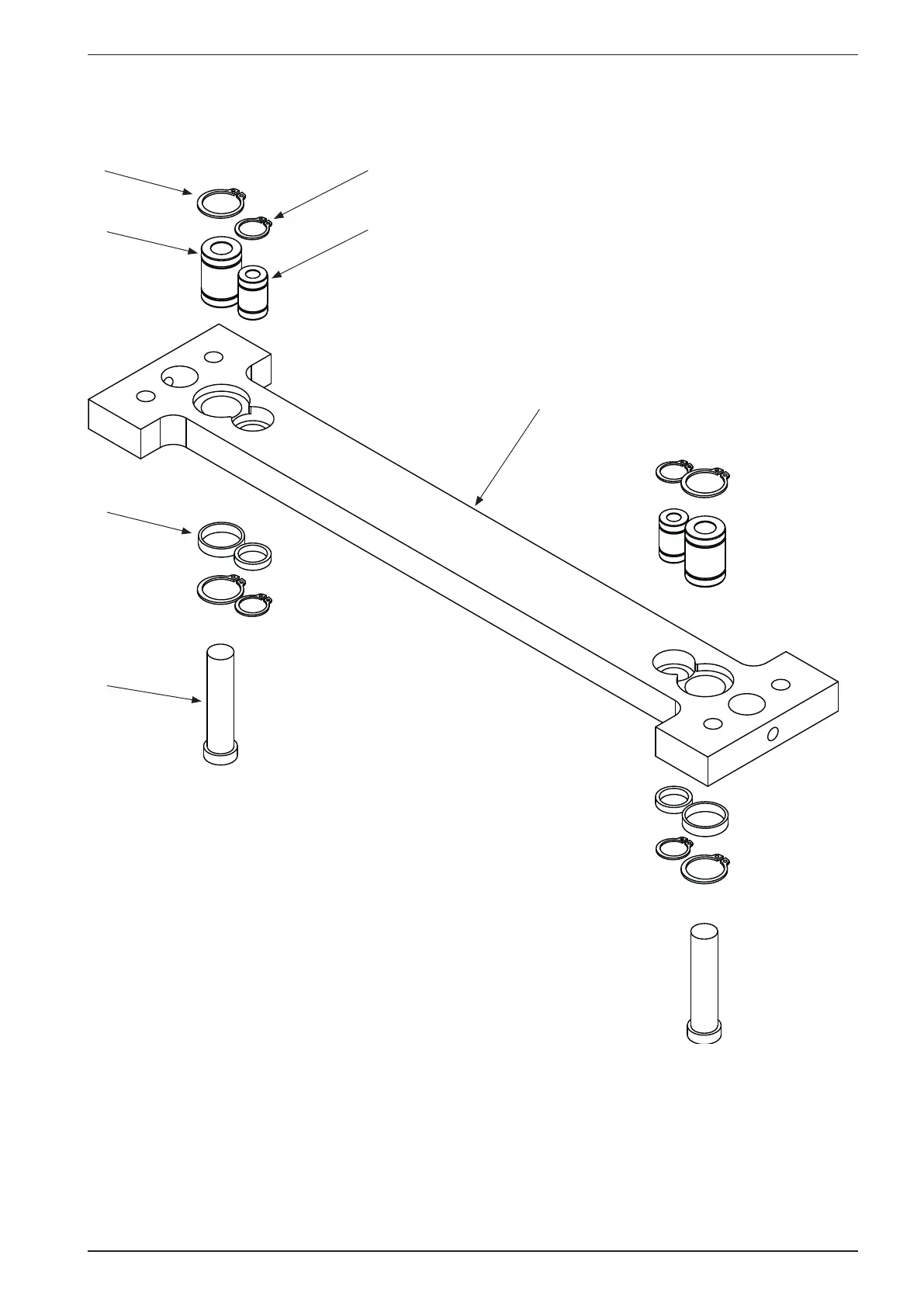

Parts top and bottom frame, exploded
Pos. Name Quantity per. frame
1 Retaining ring Ø22 ....................................................4
2 Stroke ball bearing Ø12 ............................................2
3 Spacer Ø22 ................................................................2
4 Push rod Ø12X56 ceramic .........................................2
5 Retaining ring Ø16 ....................................................4
6 Stroke ball bearing Ø8 ..............................................2
7 Frame .........................................................................1
1
2
7
3
4
5
6
