7.6 Vacuum
Is used to lift and move the sheets. The vacuum is made in an ejector placed just beside the vacuum
arm. A sensor will discover if the sheet falls off the vacuum arm during the movement.
R6
E1
14
V11
15
4
3
2
Vacuum
0
2
8
10
6
4

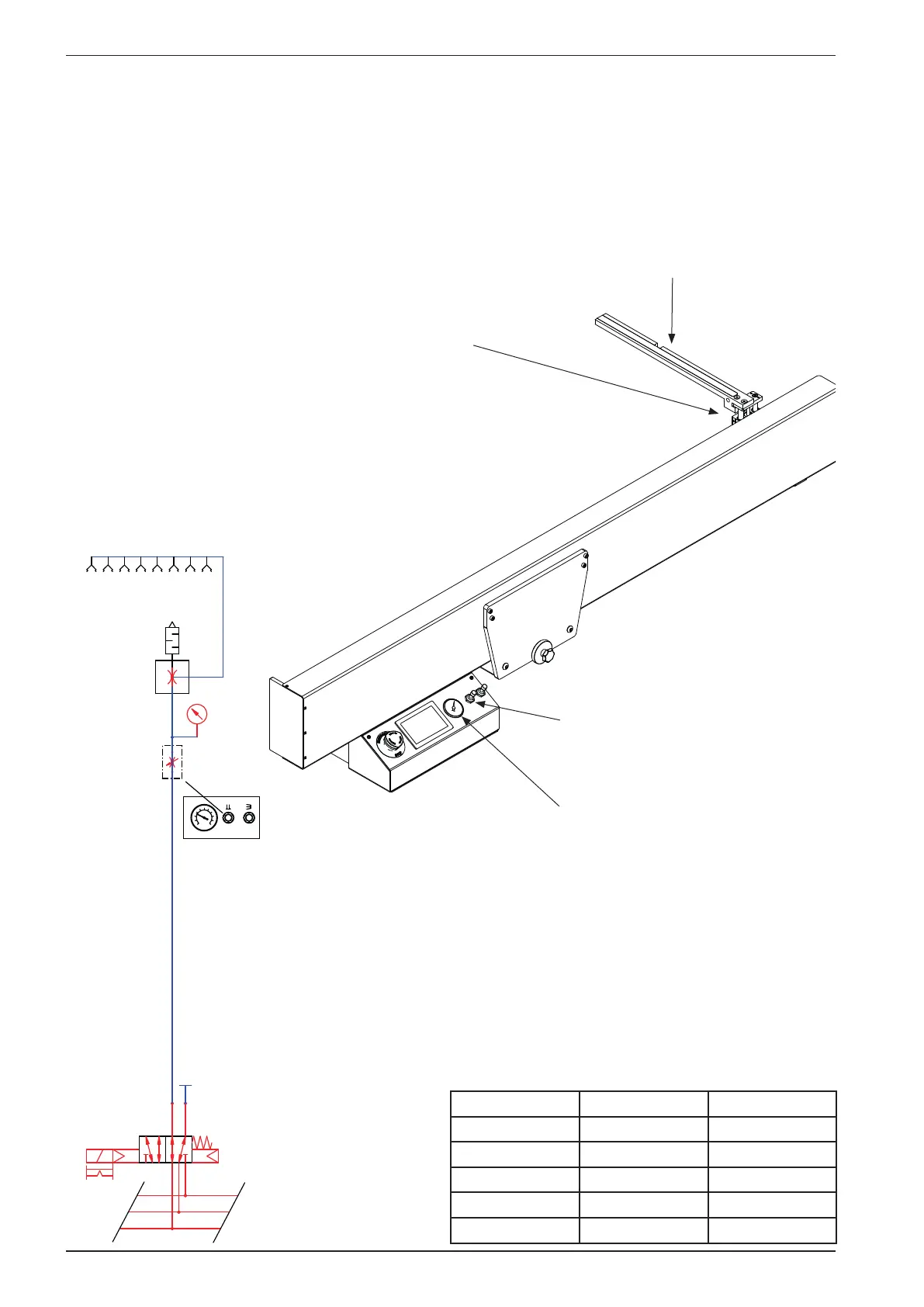

Pneumatics schematic
Name Connection Input/Output
Sensor vacuum RK6 X7
Valve V11 - Y21
Electrical information:
Vacuum arm with
suction cups
Regulates the
vacuum in the suc-
tion cups
The gauge will show
the pressure feed to
the vacuum ejector
and is proportional
with the vacuum
Vacuum ejector and
vacuum sensor
