Braillo 650 SF - Beam - Replacement of Short Pivot Arm

BRAILLO
l
B 650 SF
87
4.11 Beam - Replacement of short pivot arm

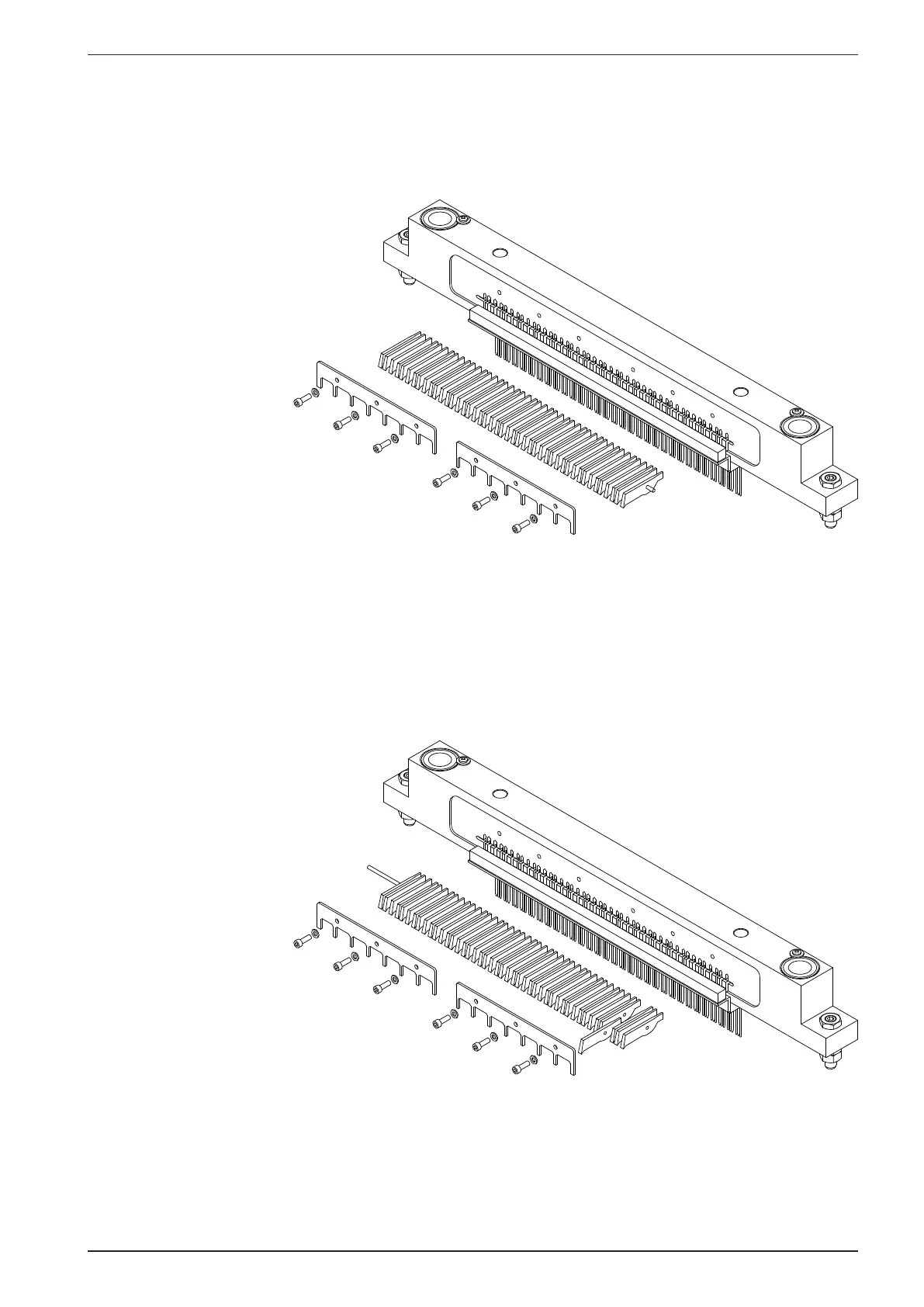

Please see gures below:
1. Remove the six screws
as indicated on the gure.
Pull out the short pivot
arms, there are 45 pcs. on
each side.
2. Pull out the shaft, and
replace the short pivot
arm(s).
Assembly is done in
reverse order.
Note! When putting the
short pivot arms back into
the beam, be sure that the
printing pins are hang-
ing vertically like on the
gure. This is to make
room for the short pivot
arm.
