Braillo 650 SF - Beam and Paper Shoes - Overview

BRAILLO
l
B 650 SF
84
4.9 Beam and Paper shoes - Overview

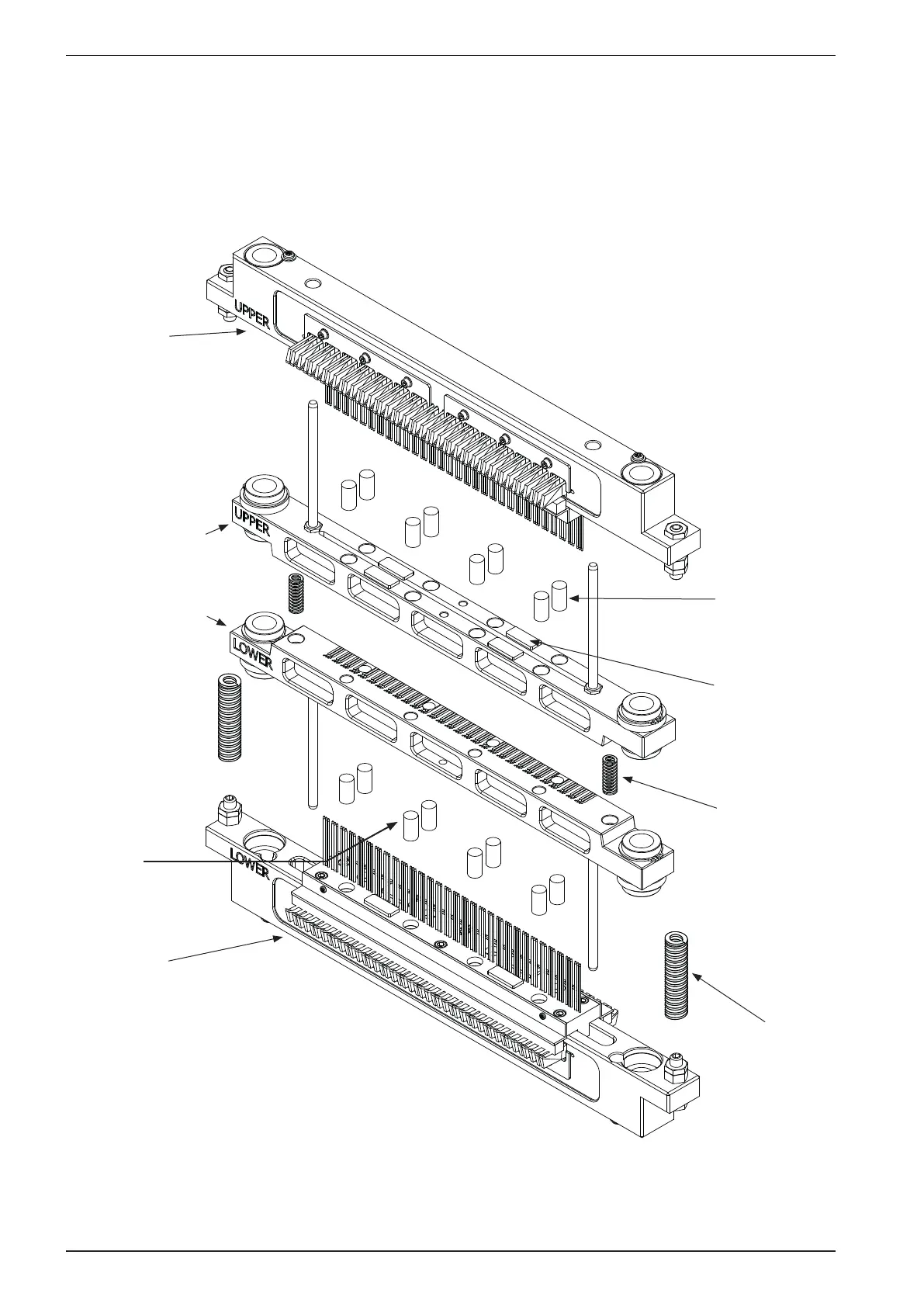

Please see the gures below:
Upper Beam
Upper Paper shoe
Lower Paper shoe
Lower Beam
Adiprene
springs
Return springs
(green)
Plastic shims
Return springs
(red)
Paper goes
in this
direction
