Braillo 650 SF - Beam and Paper Shoes - Removal and Refitting

BRAILLO
l
B 650 SF
85

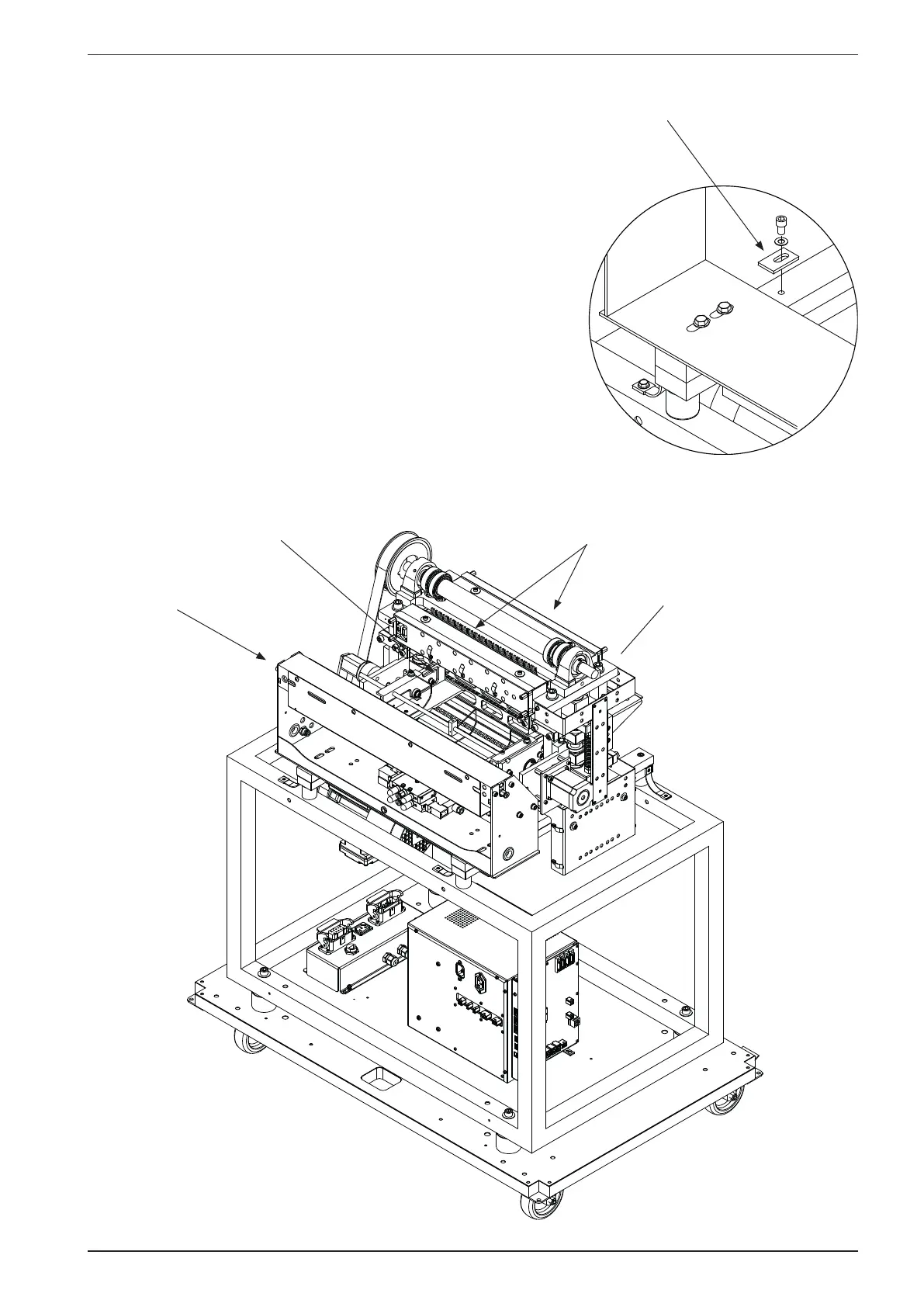

2. Paper feeder assembly
4. Magnet racks A and B
3. Inside paper guide
4.10 Beam and Paper shoes - Removal and retting
To remove the beam and paper shoes, other parts
must rst be removed. It should be done in this order:
1. Before removing the paper cutter:
Make sure that the position on the cutter can be
re-established by use of the position plates at the back
of the cutter. Do this at both sides.
Remove the paper cutter assembly
2. Remove the paper feeder assembly
3. Remove the inside paper guide
4. Remove magnet rack A and B
5. Remove the belt
6. Remove the top frame
1. Paper cutter
assembly
Position plate
