BRAILLO
l
B 650 SF
20
2.7 Connecting the units together
NOTE!
Mains voltage must be 230 V 50/60 Hz!
Always connect the units to ground!
Main
switch
Mains in
Emerg.
relay
Switch
S&F
Relay
S&F
Relay
PRF
To
PRF
To
Printer
From
Printer
To
S&F
Emerg.
switch
Emerg.
switch

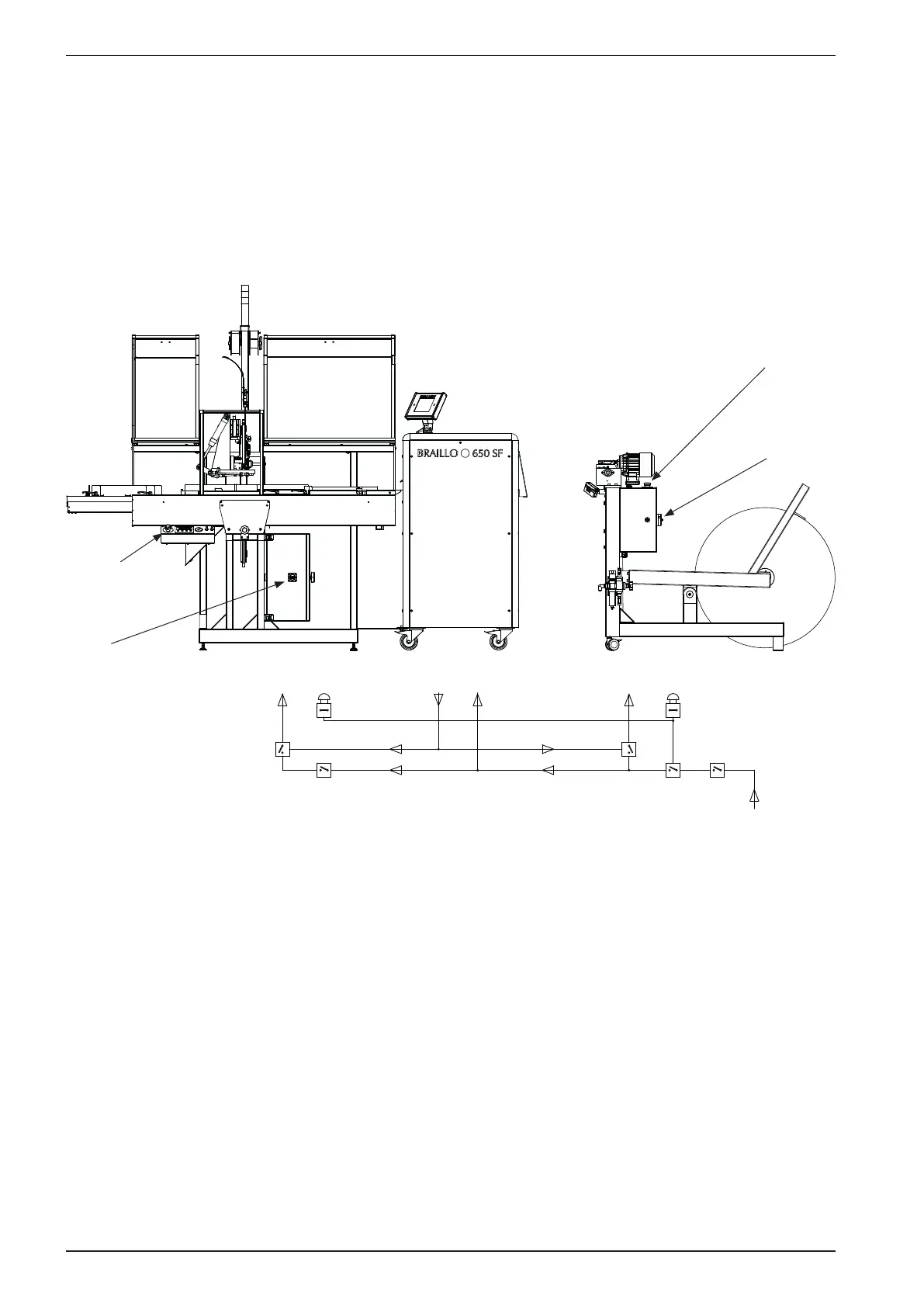

The way the units are connected regarding the 230 V is explained in the gure above.
Please note that the emergency switches will turn off the power and air to all machines when they are
pushed down. The main switch on the Paper Roll Feeder will also turn everything off.
When power is present, the Printer operator panel will turn the Paper Roll Feeder and the S&F unit on
or off.
Note! The Printer will “fall to sleep” when it has been inactive for 15 min. “Sleep” means that the
Printer operator panel will go dark and the PRF an S&F unit will be turned off.
To turn it on again, you can touch the operator panel, or send a document from the computer.
Main
switch
Emerg.
switch
Emerg.
switch
Switch
S&F
