2.5 Compressed air
This equipment requires clean, compressed air, minimum 7.0 bar @ 100 l/min., and max. temperature
50° C to the regulator to function. To make this compressed air, you will need to use some sort of com-
pressor. Regardless of the type and brand of compressor is chosen, there are some important things to
remember.
First, please read the enclosed instruction manual for the compressor!
There are many different compressors on the market, and this chapter will not deal with a particular
compressor, but will discuss the topic more in general. Please see the gure below for an example, but
refer to your compressor manual for the specic information.
Normally a compressor have two pressure gauges and a pressure regulator tted. The rst gauge is
measuring the tank pressure (before the regulator) and the second gauge is measuring the output pres-
sure (after the regulator).
The pressure at the compressor outlet must be adjusted to approximately seven bar. This can be con-
trolled at the output pressure gauge.
To have long and trouble free operation, the air must be ltered and free from oil and water.
When air is compressed in a compressor, the air temperature is rising. So the air entering the tank will
be hot. When the air is cooling down, the humidity in the air will condensate inside the tank. So the
warmer and more humid the air entering the compressor is, the more water condensates inside the tank.
The compressor is lubricated with oil and small amounts of oil may also get into the tank.
This means that the tank must be drained for oil and water on a regular basis.
If the air is supplied from the smaller types of compressors delivered from Braillo Norway AS, it is
required to keep the compressor in a similar environment as described for the Printer itself. (Tempera-

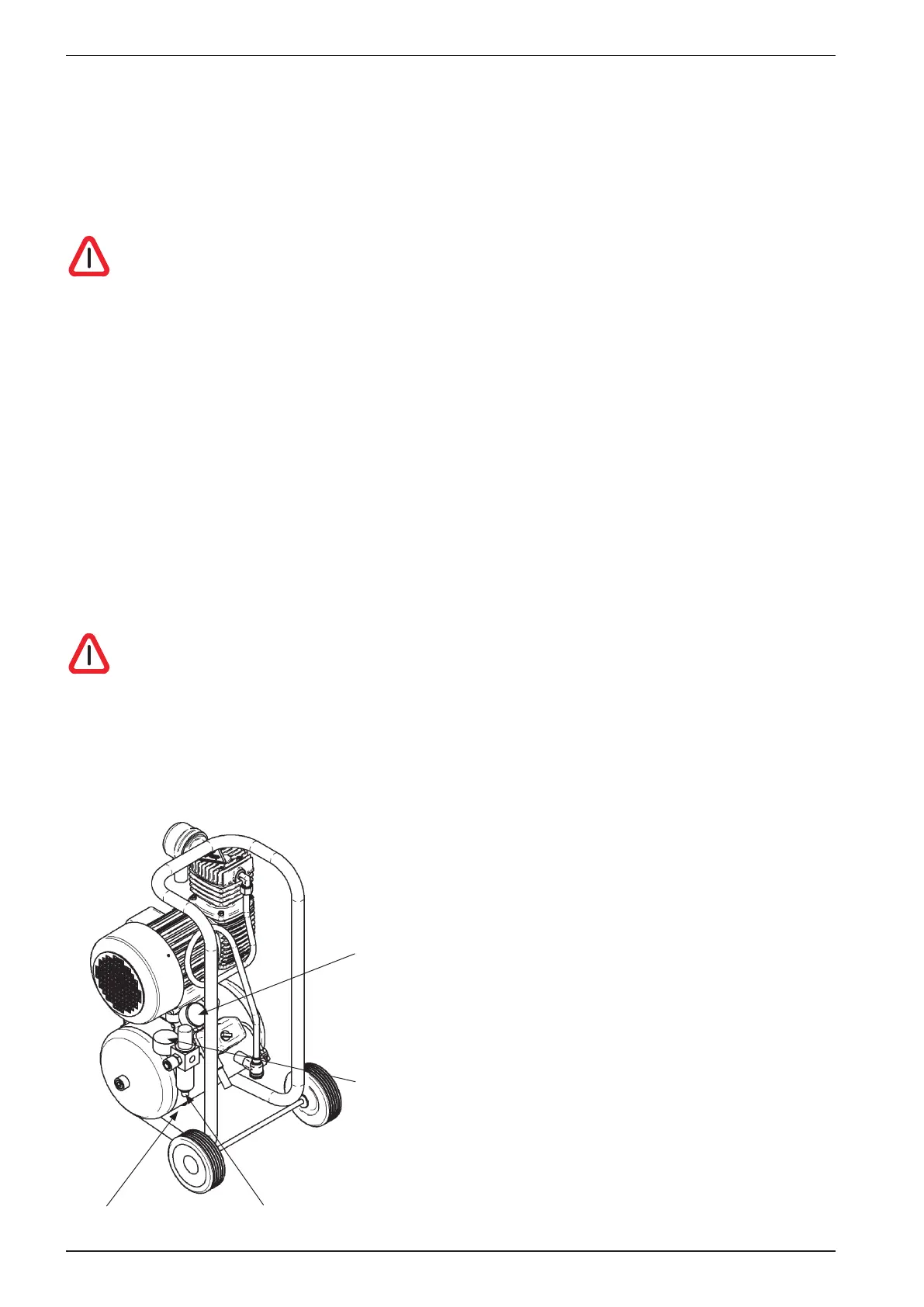

Tank drainage Filter drainage
Tank pressure
gauge
Output pressure gauge
(adjust to 7 bar)
ture 15 - 30°C (60 - 86°F) and rel. humidity
40 - 60%).
If the compressor is placed in a more harsh
environment, it might be necessary to take
further precautions to remove oil and water
from the air.
Basic elements on a compressor:
