Braillo 650 SF - Beam

BRAILLO
l
B 650 SF
98

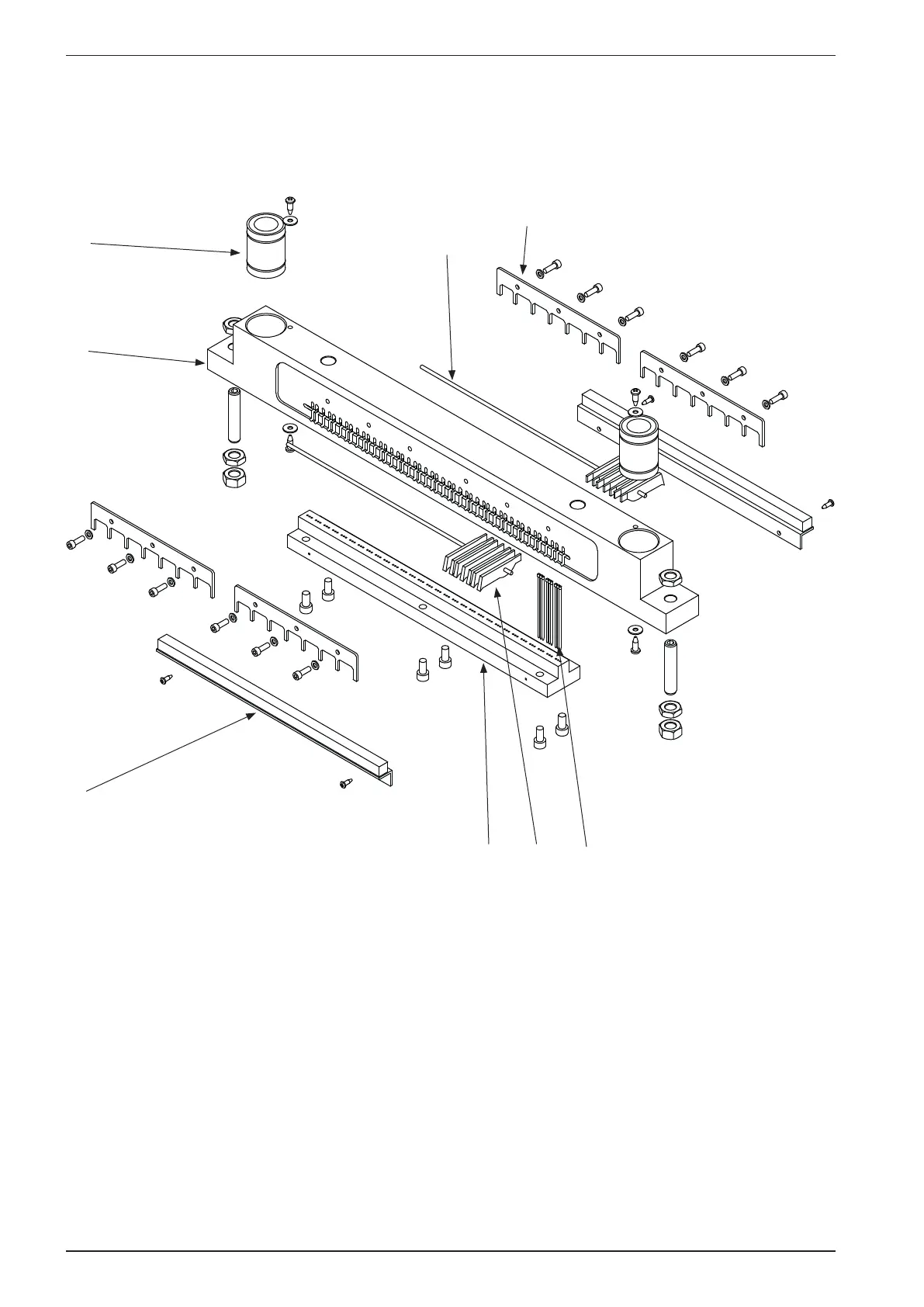

5.2 Beam
1
2
3
4
5 6 7
8
Parts beam (upper or lower)
Pos. Name Quantity per. beam
1 Stroke ball bearing Ø20 .............................................2
2 Beam, (upper or lower) .............................................1
3 Fastener for shaft short pivot arm ..............................4
4 Sponge list for short pivot arm ..................................2
5 Pin guide ...................................................................1
6 Short pivot arm ........................................................90
7 Printing pin................................................................90
8 Shaft, short pivot arm Ø3x305 ...................................2
