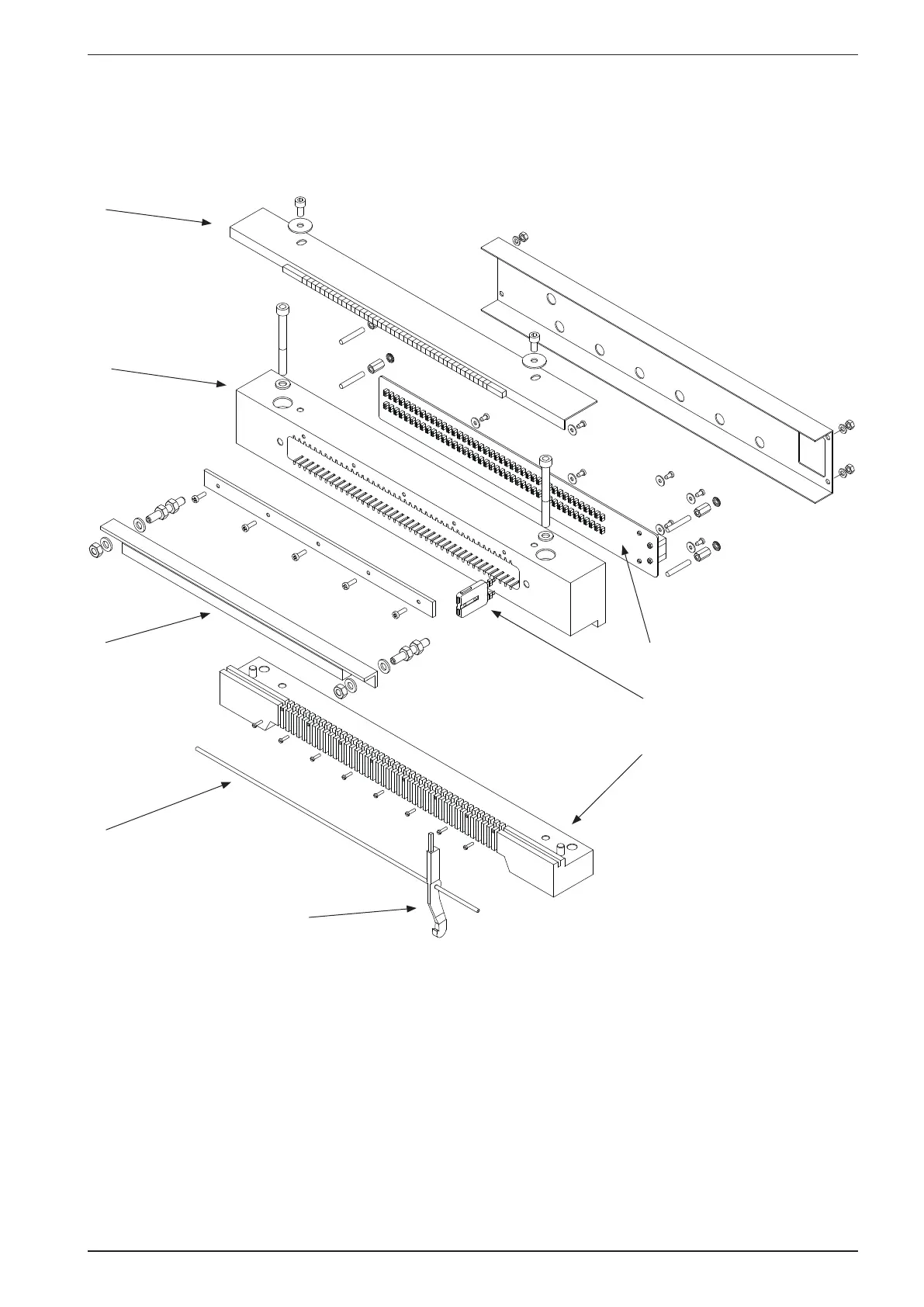

5. PARTS - EXPLODED VIEWS
5.1 Magnet rack
1
2
3
4
5
6
7
8
Parts magnet rack
Pos. Name Quantity per. rack
1 Sponge list, magnet rack ............................................1
2 Magnet rack ...............................................................1
3 Support list, magnet rack ...........................................1
4 Shaft, long pivot arm ..................................................1
5 Pivot arm, long ..........................................................45
6 Electronic board, magnet rack ...................................1
7 Magnet ......................................................................45
8 Pivot arm rack ...........................................................1
