BRAILLO
l
B 650 SF
19
From compressor To Printer and
S&F unit
To Paper Roll
Feeder
The gauge
should read
6,0 bar

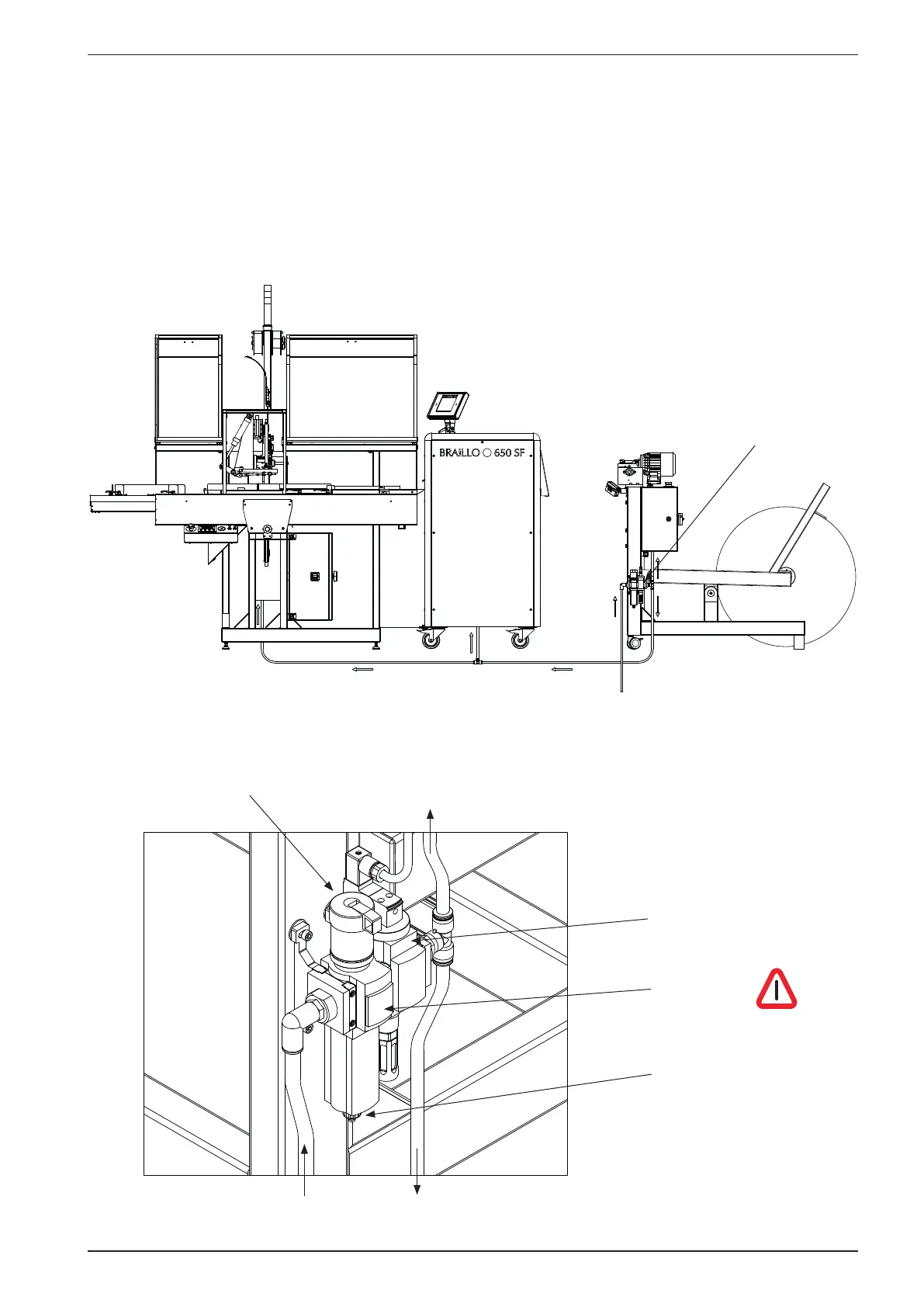

2.6 Connecting the compressed air
See gures below.
The compressed air from the compressor goes to the lter, regulator and release valve unit on the Paper
Roll Feeder. From there it goes to the Printer and to the Staple and Fold unit.
If the power is turned off, or one of the emergency switches has been pushed down, the release valve
will shut off and release the pressure of the compressed air on all machines.
From
compressor
Filter, regulator
and release valve
Release valve
Water
drainage
Regulator
