B 650 SF
99
UPPER
Parts paper shoe (upper or lower)

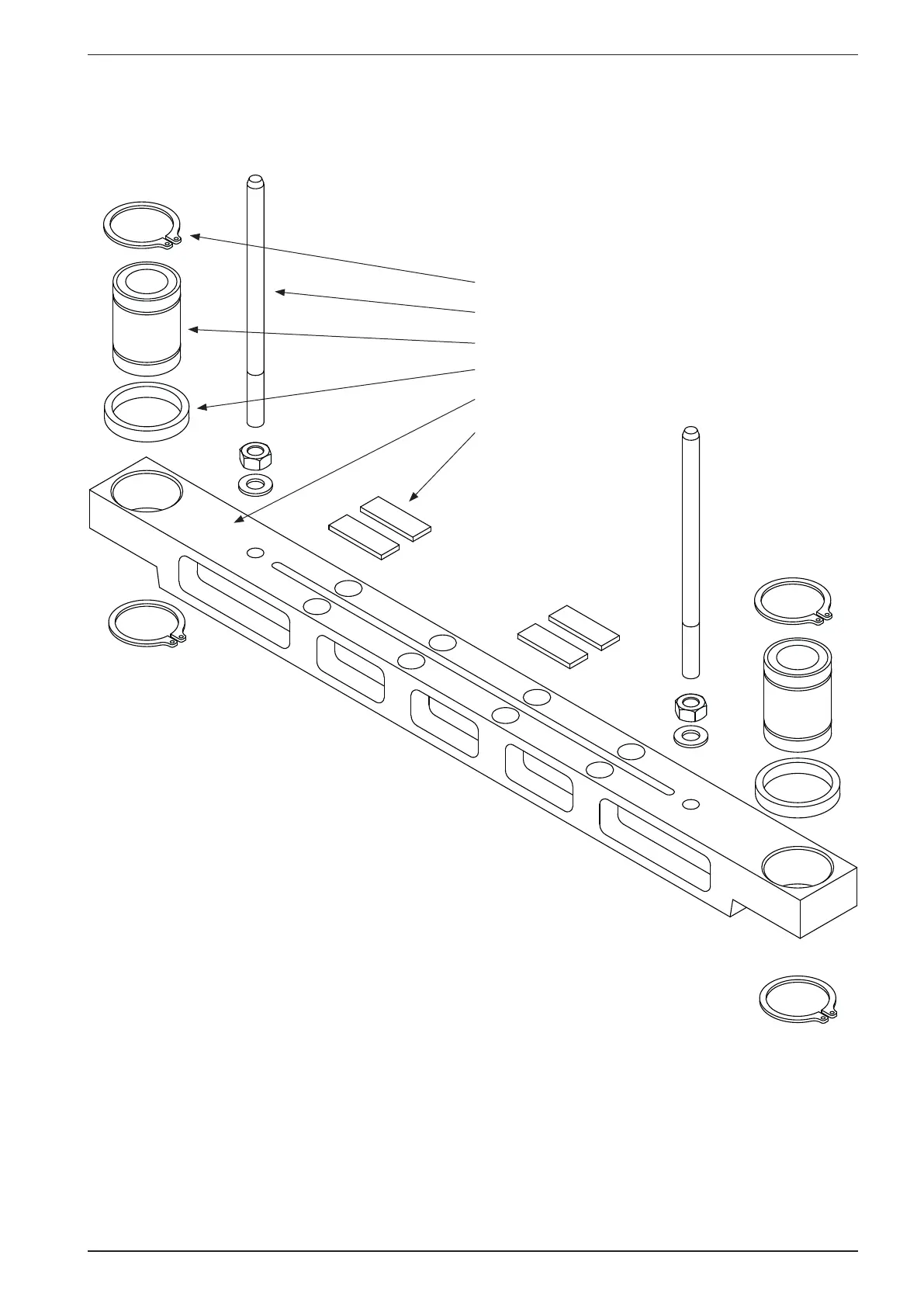

Pos Name Quantity pr. shoe
1 Retaining ring ............................................................4
2 Adjustment screw (push rod) .....................................2
3 Stroke ball bearing Ø20 .............................................2
4 Spacer ........................................................................2
5 Paper shoe (upper or lower) ...................................... 1
6 Plastic shims ..............................................................4
1
2
3
4
5
6
5.3 Paper shoe
