BRAILLO
l
B 650 SF
86
Beam and paper shoes - Removal and retting (continued)
7. Now the beams and paper shoes can be lifted carefully upwards.
Assembly is done in the reverse order.

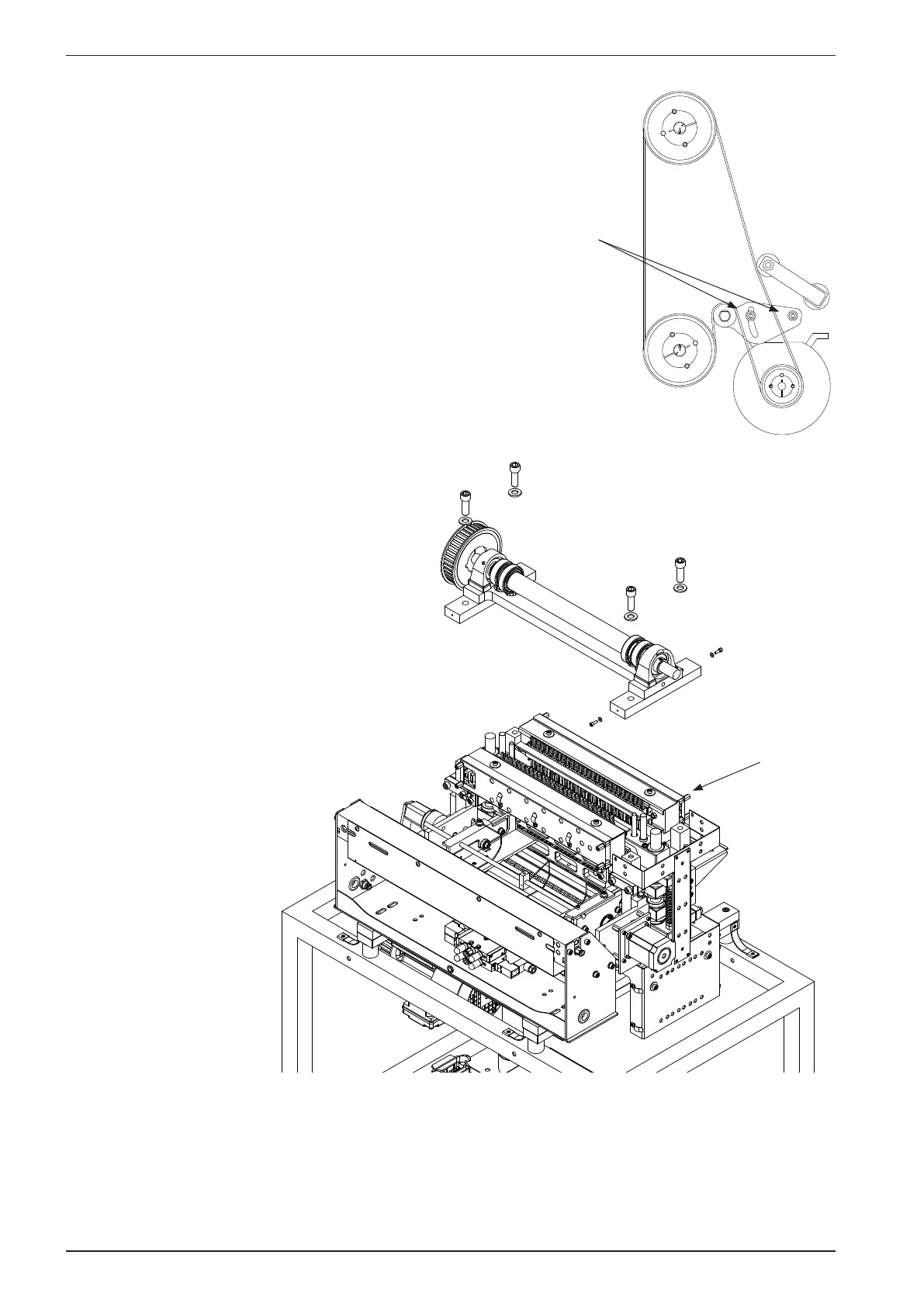

5. Remove the belt.
This is done by loosening the belt tensioner
screws. When this is done, the belt can be lifted
off the upper cogwheel. Please see gure to the
right.
Loosen these
two screws to
remove the belt
6. Remove the top frame.
Unscrew the bolts as indicated on the
gure to the right, and then lift the frame
carefully upwards. Set aside.
Upper/lower
marking is
facing this side
