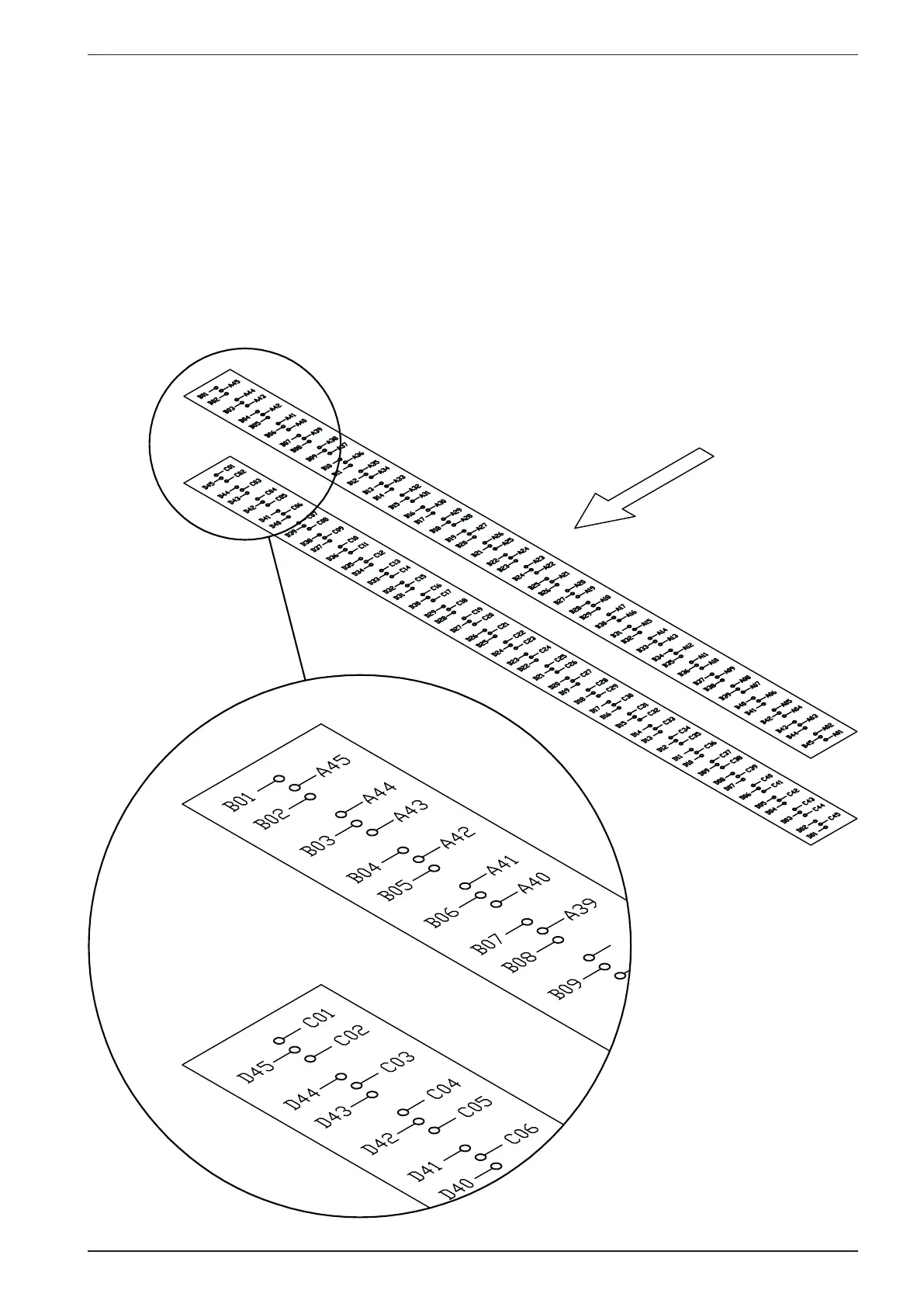

Which magnet makes what dot?
Please take some time to examine the gures below and on the next page. It is very important that you
know how the magnets are arranged to be able to understand how the Printer works.
The letters and numbers on the gures is indicating the following:
The letter A, B, C and D is the name on the magnet rack. The number following the letter is the par-
ticular magnet number in that particular magnet rack.
(Note that the magnet numbers are always counted from the end where the connectors are tted. Don’t
mix this with character/line/column number).
Magnet rack A and B are
placed above the paper, and
print dots that will appear on
the underside of the paper.
Magnet rack C and D are
placed under the paper, and
print dots that will appear
on the top side of the paper.
Paper direction
