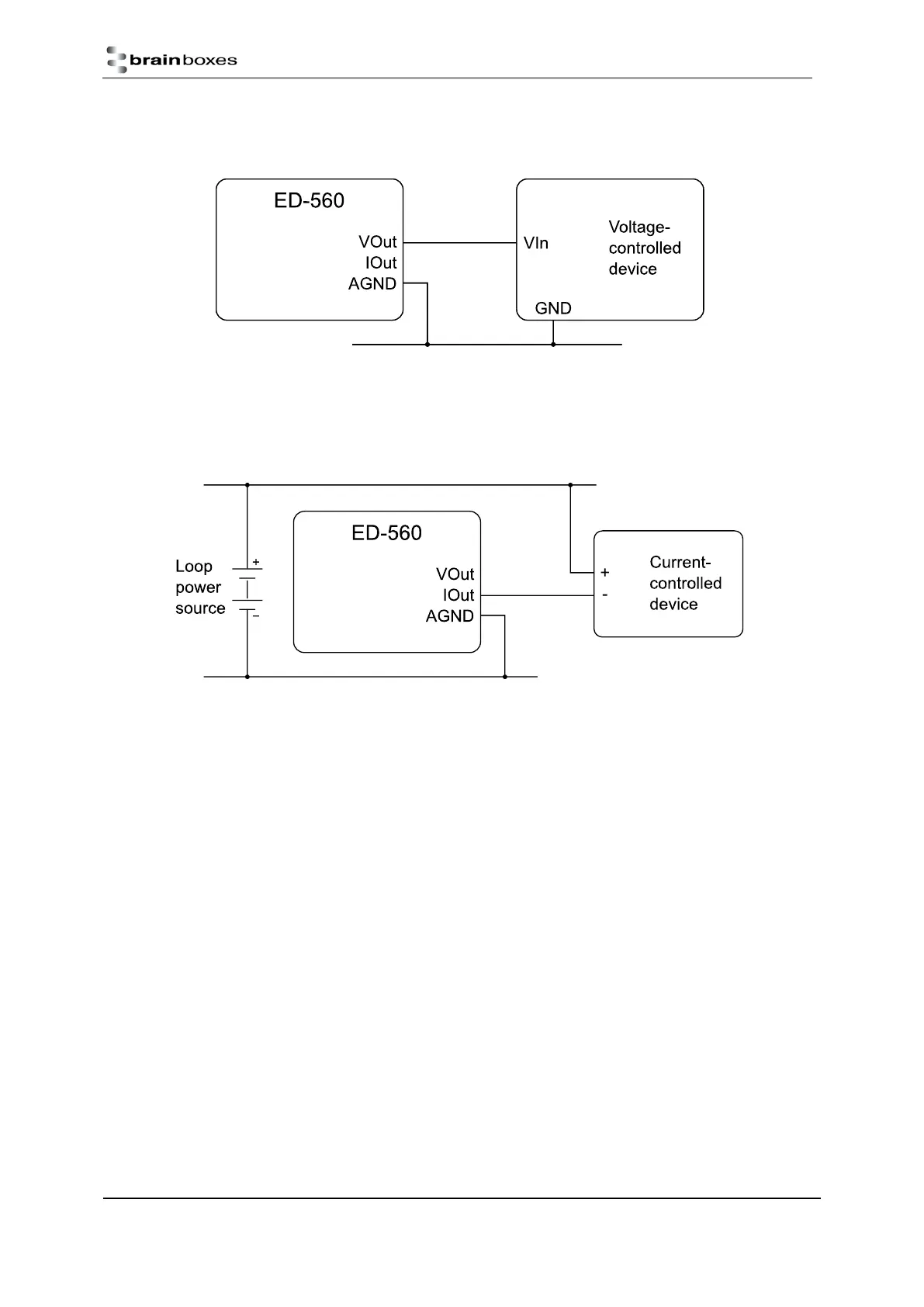

Connecting analogue devices to the ED-560
Single-ended voltage signal
Configure the output channel to the 0-10V range and leave the IOut terminal unconnected.
Current-loop signal
Configure the output channel to the 0-20mA or 4-20mA range and leave the VOut terminal unconnected.
