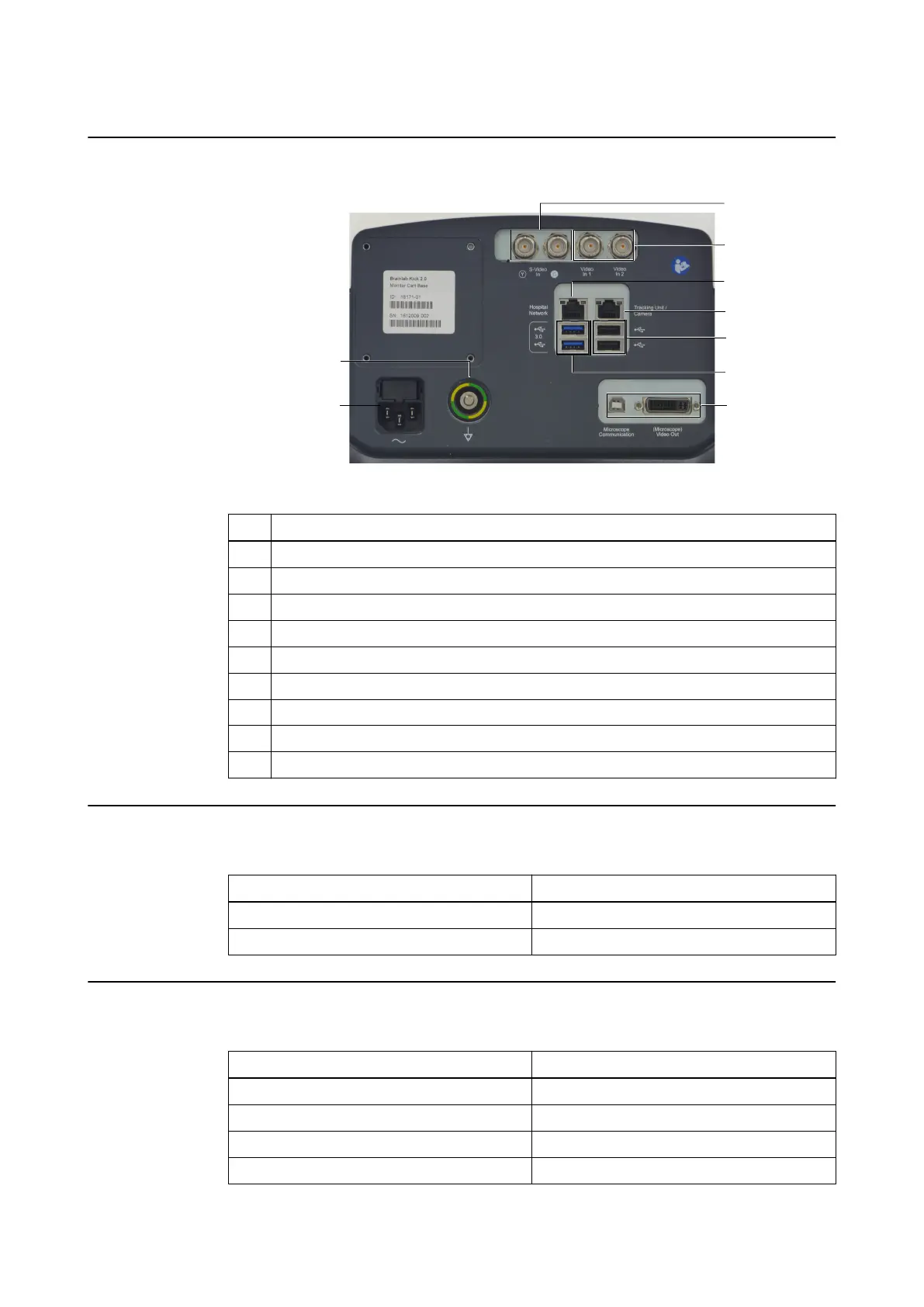

Connection Panel
Figure 2
No. Component
①
Mains power
②
Potential equalization
③
S-Video In
④
Video In
⑤
Hospital Network
⑥
Tracking unit
⑦
USB 2.0
⑧
USB 3.0
⑨
Microscope/Video Out
Tracking Unit
The Kick 2 (article number 18170) can be used with either of the following components:
Component Article Number
Kick 2 Spectra Camera Cart 18178
Kick 2 Vega Camera Cart 18172
Detachable Components
The Kick 2 (article number 18170) comprises the following components:
Component
Article Number
Display with hinge (“monitor”) 18171-18
Monitor post 18071-04
Monitor protection cover 18174-02
DVD drive for Kick 2.0 (optional) 18176
KICK 2 OVERVIEW
System and Technical User Guide Rev. 1.3 Kick 2 Navigation Station 21
