Brainlab KOLIBRI - Dismantling;Assembling Mobile Camera Stand

86 System User Guide Rev. 2.5 Kolibri Ver. 2.0
Dismantling & Assembling
5.6.2 Dismantling/Assembling Mobile Camera Stand

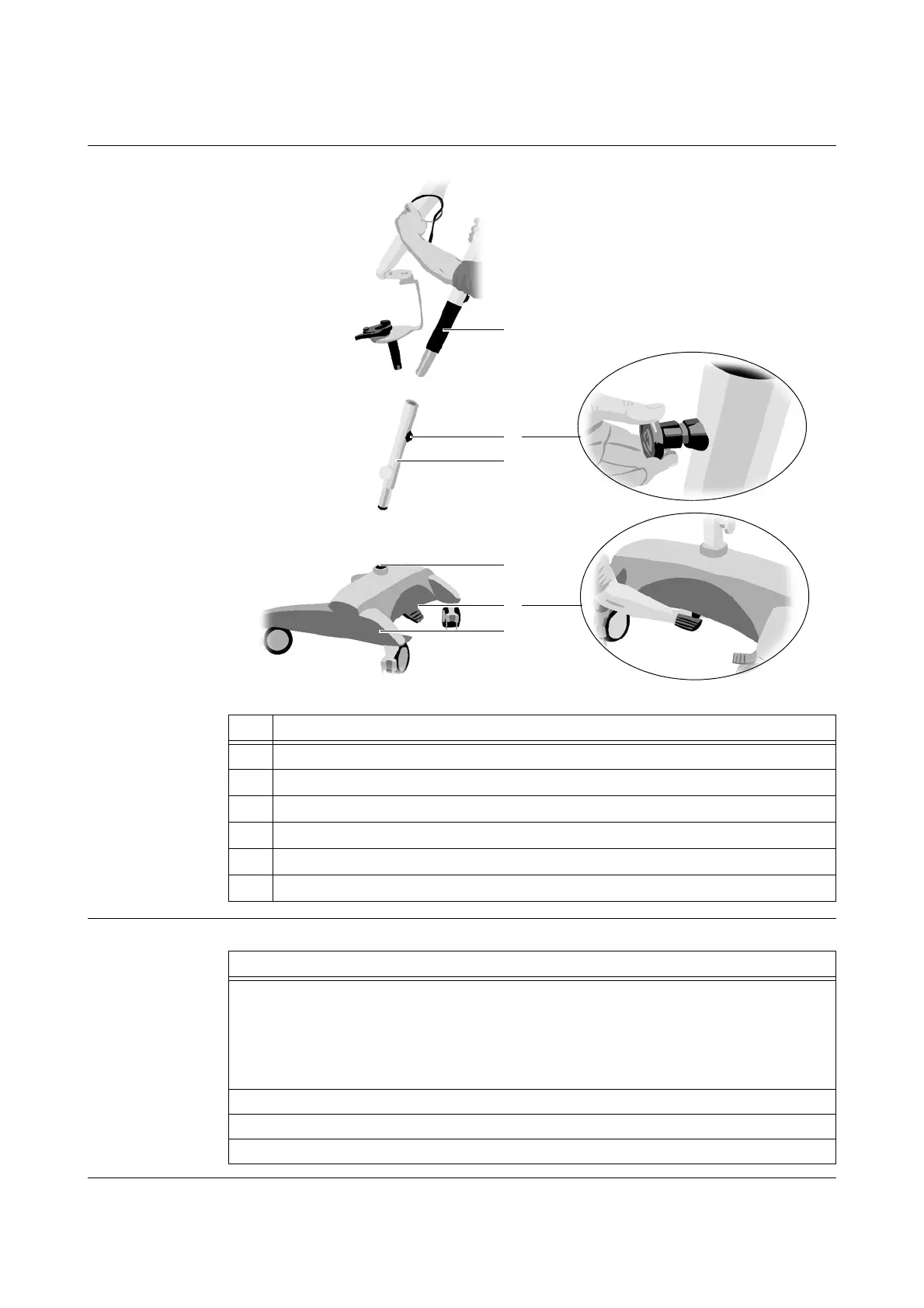

Illustration
Figure 48
How to Dismantle
No. Component
a
Upper part
s
Button
d
Lower part
f
Opening
g
Knurled screw
h
Base
a
s
d
f
h
g
Steps
1. Ensure that:
• All cables are unplugged
• Camera stand is in park position
• Camera stand is cleaned
• Camera is removed
2. Pull button
s and turn it to the left to remove upper part a of stand from lower part d.
3. Loosen knurled screw
g.
4. Lift lower part d out from base h.
