Chapter 4: Installation and Setup
Installation Steps

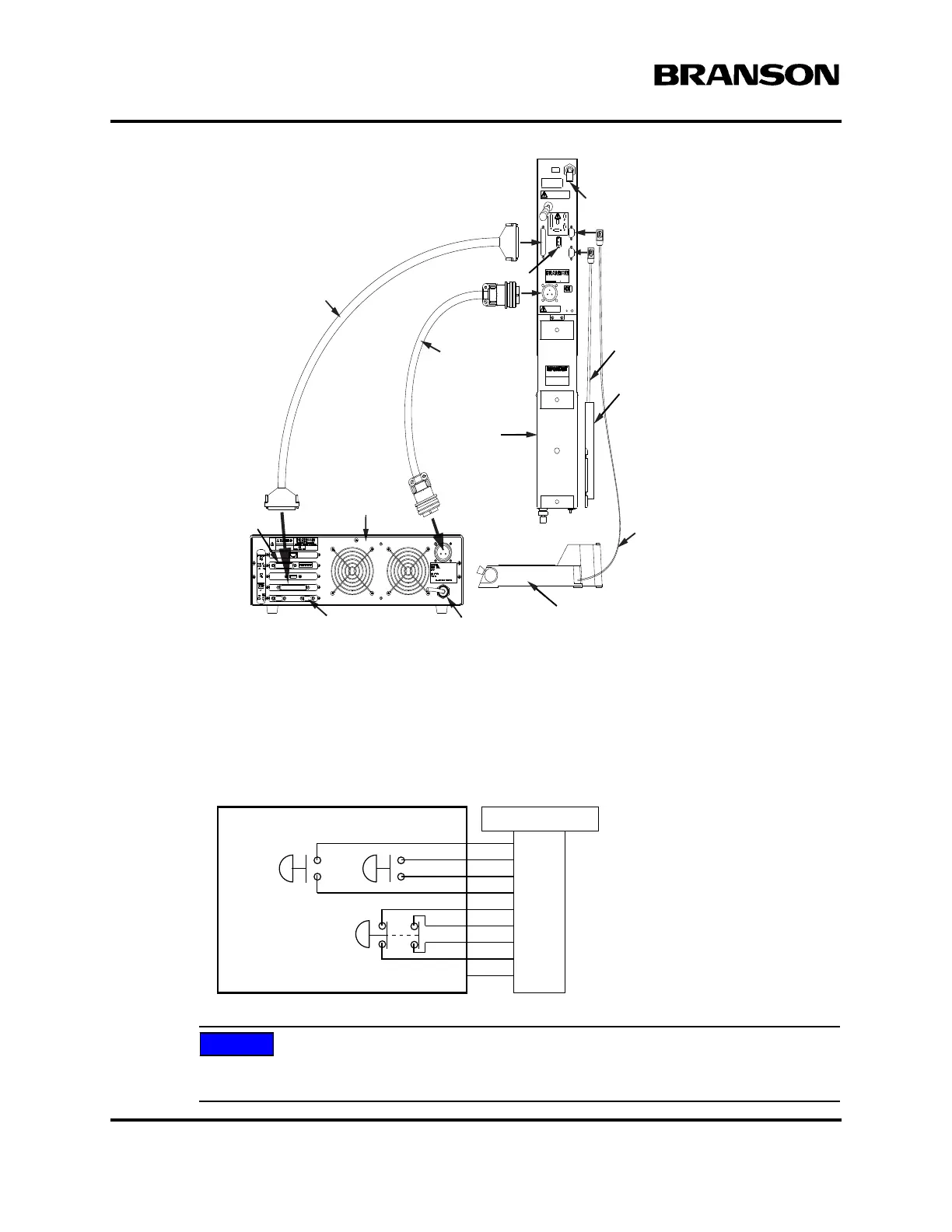

Figure 4.16 Electrical Connections from Power Supply to a 2000X-series Actuator
4.5.8 Start Switch Connection (Automation)
A Branson actuator requires two start switches and emergency stop connection. Stands on a base include
this connection (factory installed and connected from the base) while the stand on a hub and actuator (alone)
applications require the user make their own start switch/E-stop connections, as follows:
Figure 4.17 Start Switch Connection Codes
NOTICE
Solid state devices may be used in lieu of mechanical start switches providing their leakage
current does not exceed 0.1mA.
Actuator
Interface Cable
MPS/GDS
Linear Encoder
Cable**
J931s
RF Cable
Alarm I/O,
Optional
Power Supply
rear view
RS 232 for Host Computer Line Cord
Actuator
Base, shown rotated 90° CCW
Start Switch
Cable
Linear Encoder**
Air Inlet*
*ae/aed actuator air input shown
**aed and aef only
P69
EMER
STOP
START SWITCHES
PB1PB2
1
2
3
4
5
6
7
PB2RTN
9
8
Color Codes
PB1RTN
PB1SRC
PB2SRC
ESTOPSRC
ESTOPSRC
ESTOPRTN
ESTOPRTN
N/C
Blue
Black
White
Orange
Purple
Yellow
Red
Green
Brown
