Branson 2000X Series User Manual

2-2 100-214-276 Rev. 3
Chapter 2: Introduction to the 2000X aed Actuator
Models Covered
Figure 2-1 shows a Branson 2000X aed Actuator mounted on a column support which, in turn
is mounted on a column, and is supported by the ergonomic base.

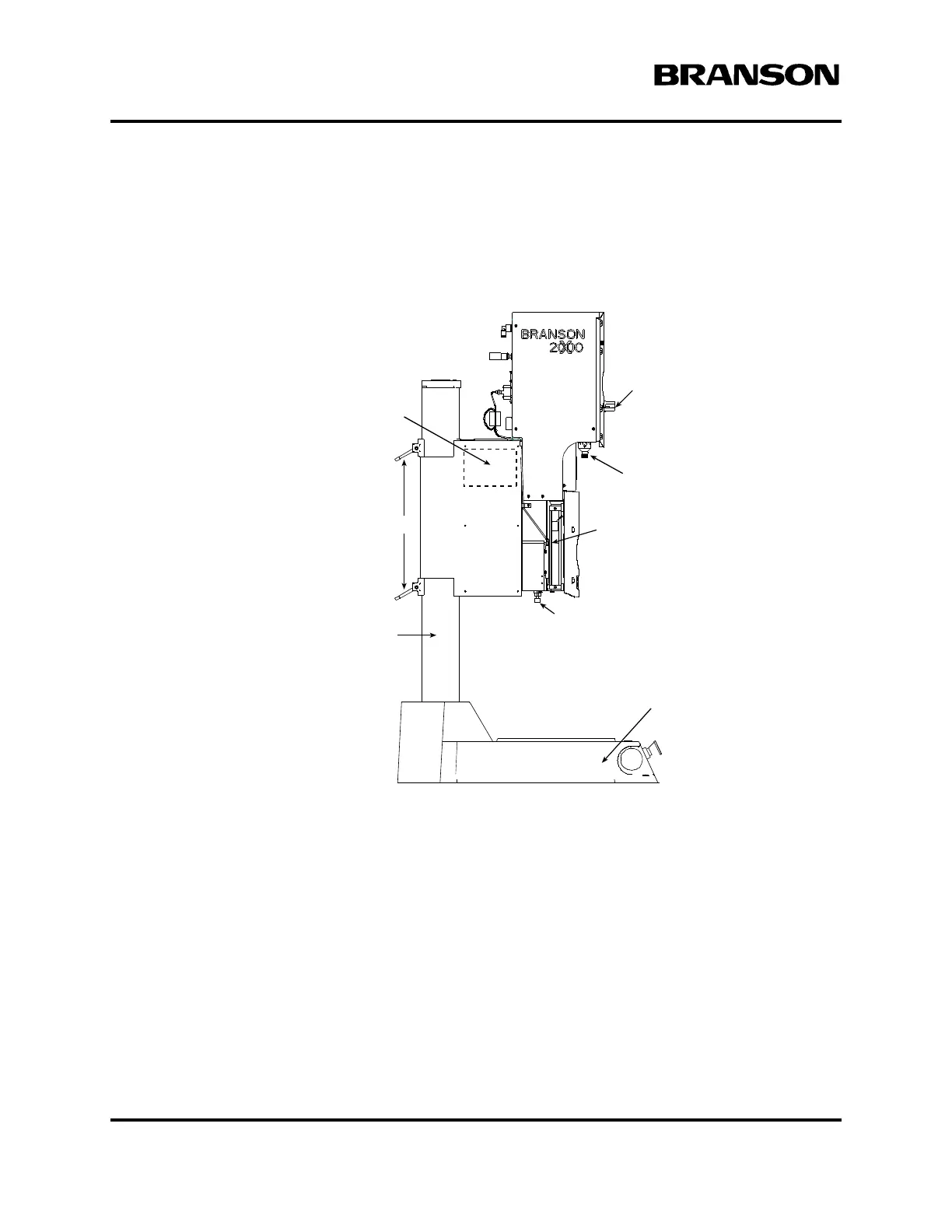

Figure 2.1 Left Side View of the 2000X aed Actuator
2000X ae/aed Actuator
Air Pressure
Adjust
Downspeed
Control
Encoder
(2000X aed only)
Mechanical
Stop Adjust
Column Support Clamps
Actuator
Support
Column
Base
DOC EXPIRES 12PM 7/24/2012. Article or Material must comply with the requirements
stipulated by RoHS in its current version

Branson 2000X Series Specifications

General

Frequency	20 kHz
Overload Protection	Yes
Frequency Range	19.5 kHz to 20.5 kHz
Voltage	50/60 Hz
Operating Temperature	0 - 40° C
