100-214-276 Rev. 3 4-3
2000X aed Actuator Chapter 4: Installation and Setup
Instruction Manual Handling and Unpacking
4.2.1 Unpack the Power Supply
Power supplies are shipped in a cardboard carton. It weighs approximately 40 lbs.
1. Open the box, remove the two foam top packing halves and lift the power supply out.
2. Remove the toolkit(s) and other components shipped with the power supply. These items may be
shipped in small, separate boxes, or underneath the power supply in the box.
3. Save the packing material; evaluation systems will be returned using this packing material.
4.2.2 Unpack the Stand or Actuator
The stand (or actuator) is heavy and packed in a protective shipping container. The actuator toolkit is packed
with the actuator. A booster, converter and other components may be packed inside the shipping container
(depending on the equipment ordered).
• Stands are shipped on a wooden pallet with a cardboard box cover.
• Actuators (alone) are shipped in a rigid cardboard box using protective foam shells for support.

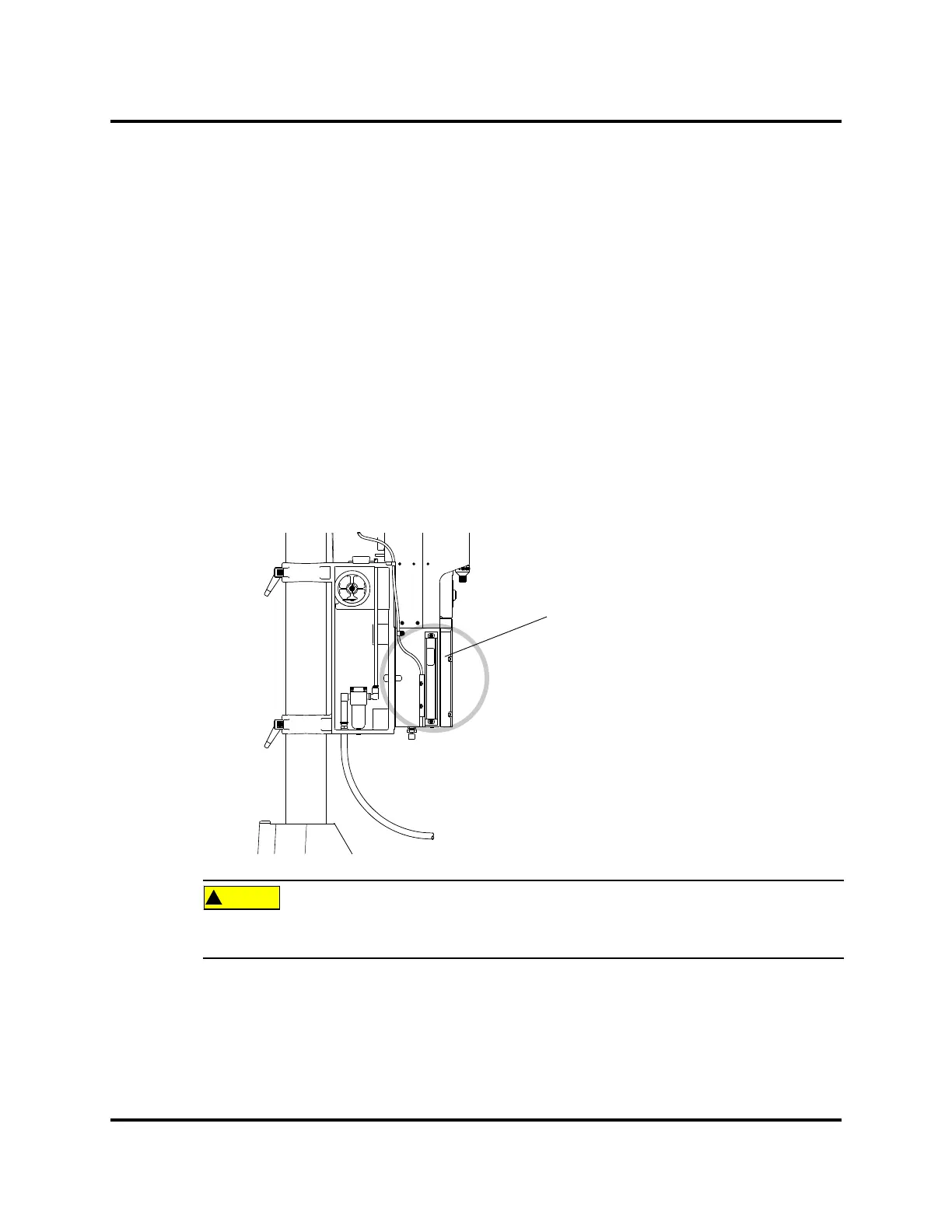

Figure 4.1 Linear Encoder is Sensitive; Do Not Handle It!
The linear encoder (on the left side of the actuator) is very sensitive. Do not use the linear
encoder assembly as a hand-hold, allow no impact on it, and do not place any weight on it.
Depending on which one of the following options applies to you, unpack the Branson actuator assembly:
Actuator on stand shown,
left side view
Linear encoder on left side
of Actuator
Do not touch, bump, or
use as a handle
DOC EXPIRES 12PM 7/24/2012. Article or Material must comply with the requirements
stipulated by RoHS in its current version
