100-214-276 Rev. 3 2-3
2000X aed Actuator Chapter 2: Introduction to the 2000X aed Actuator
Instruction Manual Overview of this Model

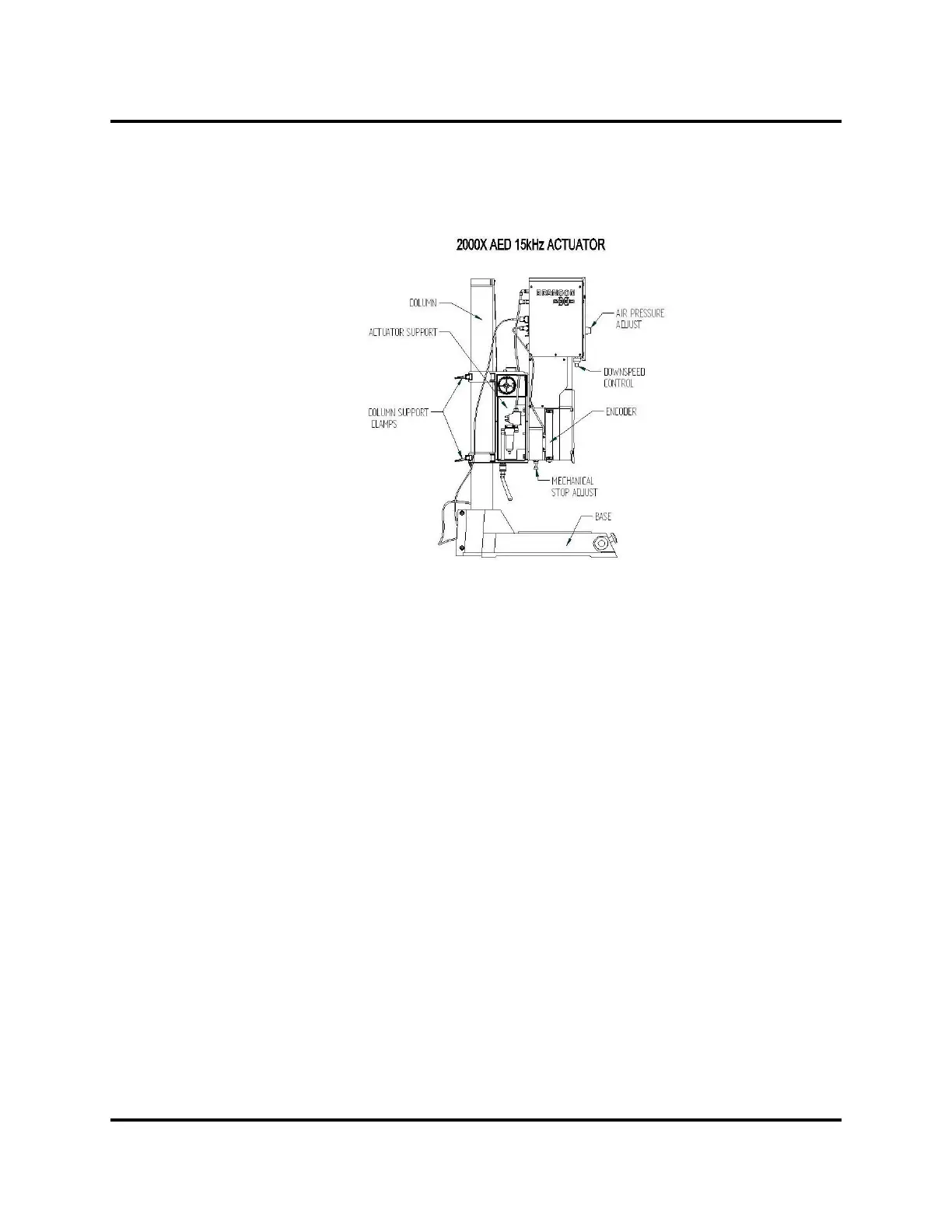

Figure 2.2 Left Side View of the 2000X aed 15kHz Actuator
2.1.1 Power Supply Manual Set
The following documentation is available for the Branson 2000X-series Power Supplies that are
compatible with the 2000X aed Actuator:
• 2000X distance Power Supply Instruction Manual (EDP 100-412-167)
• 2000-Series Installation Guide (EDP 100-214-226)
• 2000X distance Quick Start User’s Guide (EDP 100-412-169)
2.2 Overview of this Model
The 2000X aed Actuator is a compact, rigid unit designed for use in manual, semi-automated,
and automated ultrasonic welding systems. The Actuator can be mounted directly on an I-beam
(or similar machine frame), or it can be mounted on a column and base with start switches and
used in a manual or benchtop system. The Actuator is designed to be operated in an upright posi-
tion, but is capable of running horizontally or inverted. If you are mounting your equipment in
an inverted position, contact Branson for further recommendations. (See 1.5.3, Departments to
Contact, on page 1-13.)
The 2000X aed Actuator requires a 2000X distance Power Supply for power and control of the
Actuator’s operation and to provide ultrasonic power to the Converter in the Actuator.
