Branson 2000X Series - Connecting Tip to Horn

100-214-276 Rev. 3 4-37
2000X aed Actuator Chapter 4: Installation and Setup
Instruction Manual Assemble the Acoustic Stack
4.8.6 Connecting Tip to Horn
1. Clean the mating surfaces of the horn and tip. Remove foreign matter from the threaded stud and hole.
2. Hand assemble the tip to the horn. Assemble dry. Do not use any silicone grease.
3. Use the spanner wrench and an open-end wrench (refer to Figure 4.19) and tighten to the Torque tip
specifications in Table 4.10
.

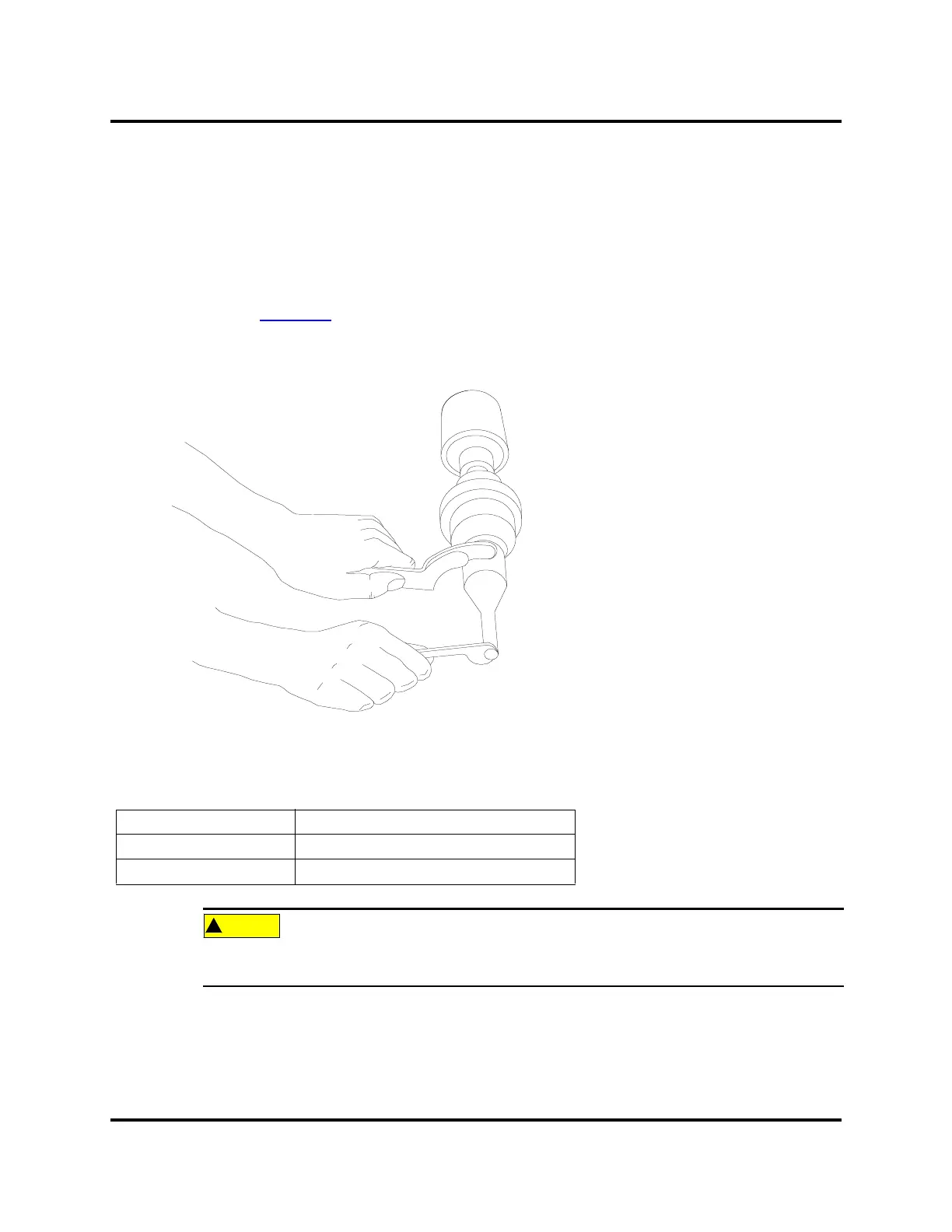

Figure 4.23 Connecting Tip to Horn
Table 4.11 Tip to Horn Torque Specifications
CAUTION
!
The horn of 2000X 15kHz actuator is not excess of 30kg for ordinary application. If you have
bigger horn application, please contact Branson for further assistance.
Tip Thread Torque
1/4 - 28 110 in.-lbs, 12.42 Nm.
3/8-24 180 in.-lbs, 20.33 Nm.
