ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
156

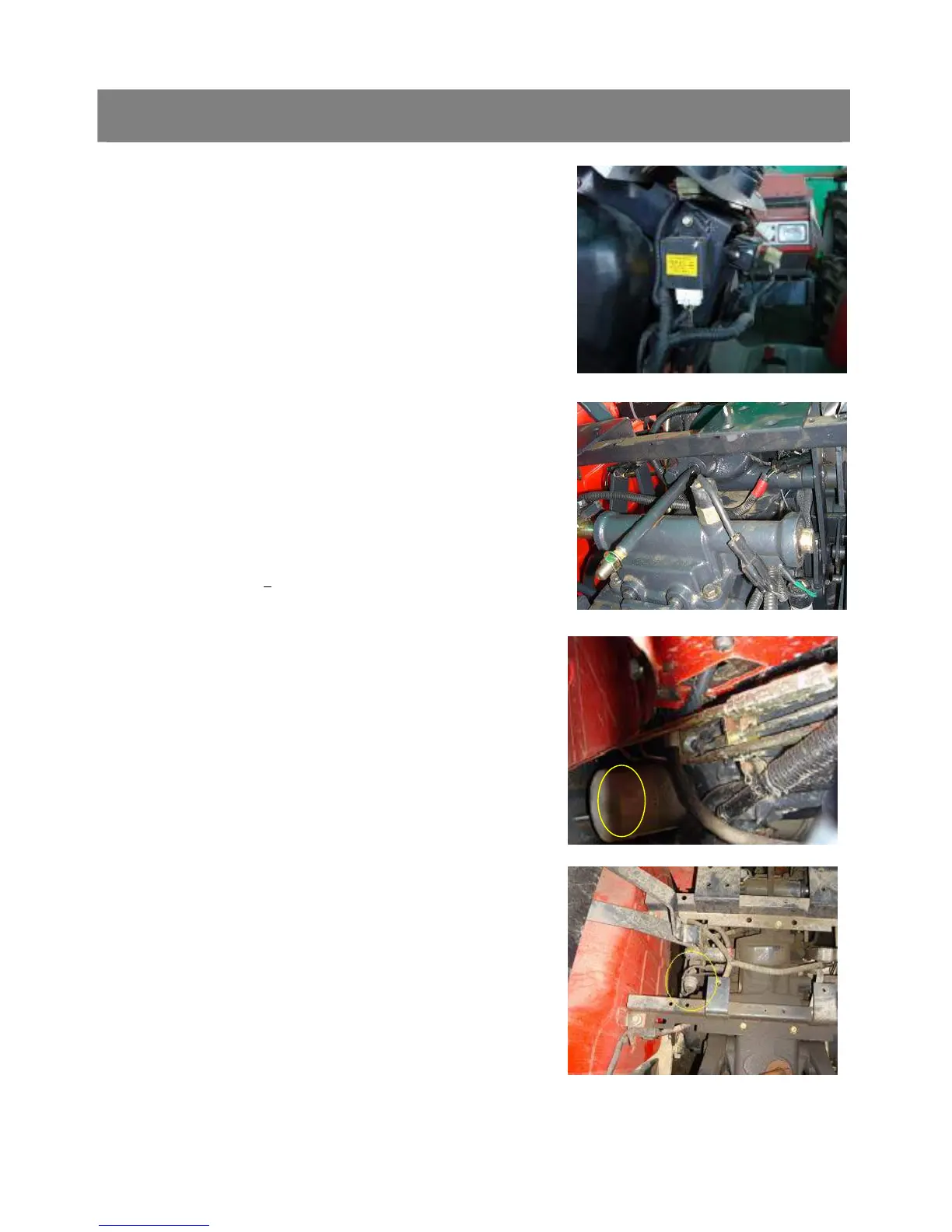

5. Start Glow Timer(Engine Control Unit)
The start glow timer is located inside of the dashboard.
6. Neutral Switch (Manual Transmission)
This switch is equipped only with manual transmission type, and
located on the transmission case upper cover. When the main
speed change lever is not in neutral, this switch is pushed in and
electric circuit is opend.
7. HST Pedal Switch (HST Transmision)
This switch is equipped only on HST units. When the PTO pedal
is in neutral, this switch is pushed in and the electric circuit is
closed.
8. Rear PTO Switch and Mid PTO Switch
These switches are located near the PTO gear shift lever. When
the PTO gear shift lever is in neutral, the rear PTO switch is
pushed in and the electric circuit is closed.
On the other hand, the Mid PTO switch is to detect the PTO
gear shitf lever in 2
nd
PTO speed
