FRONT AXLE
KUKJE MACHINERY CO., LTD.
49

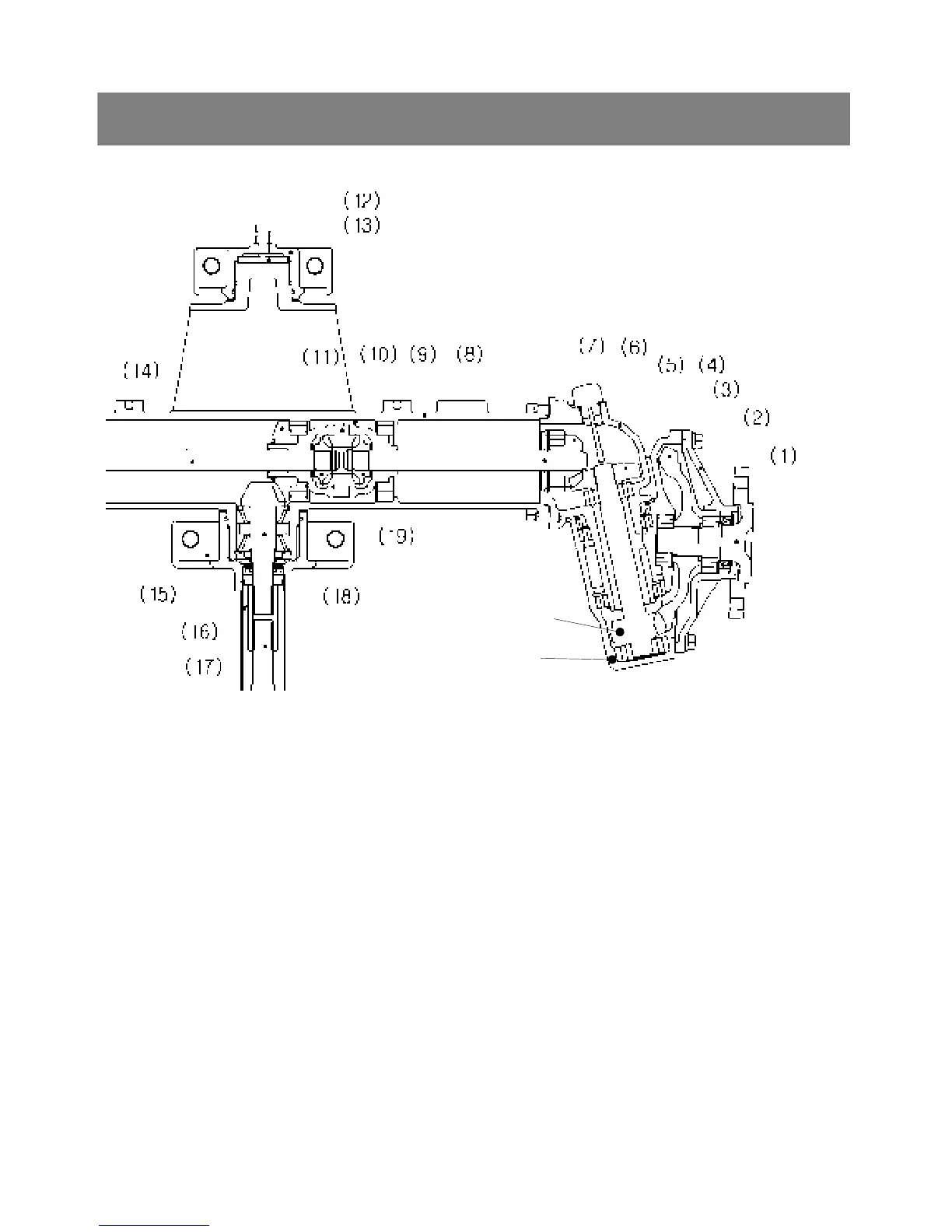

1. STRUCTURE
1) Axle 2) Axle Flange 3) Bevel Gear
4) Bevel Gear 5) Bevel Gear Case 6) Bevel Gear
7) Differential Yoke Shaft, LH 8) Front Axle Case 9) Differential Gear Assembly
10) Differential Pinion Gear 11) Spiral Bevel Gear 12) Collar
13) Front Axle Bracket, Front 14) Differential Yoke Shaft, RH 15) Front Axle Bracket, Rear
16) Coupling 17) Propeller Shaft 18) Spiral Bevel Pinion Shaft
19) Differential Side Gear 20) Bevel Gear Shaft 21) Bevel Gear Case
The front axle of the 4WD is constructed as shown above. Power is transmitted from the transmission case
through the propeller shaft(17) to the spiral bevel pinion shaft(18), then to the spiral bevel gear(11) and to
the differential side gear(19).
The power through the differential side gear is transmitted to the differential yoke shaft(7), (14), and to the
bevel gear shaft(20) through the bevel gears(4), (6) in the bevel gear case(5).
The revolution is greatly reduced by the bevel gears(21), (3), then the power is transmitted to the axle(1).
The differential system allows each wheel to rotate at a different speed to make turning easier.
(20)
(21)
