BRAKE
KUKJE MACHINERY CO., LTD.
111

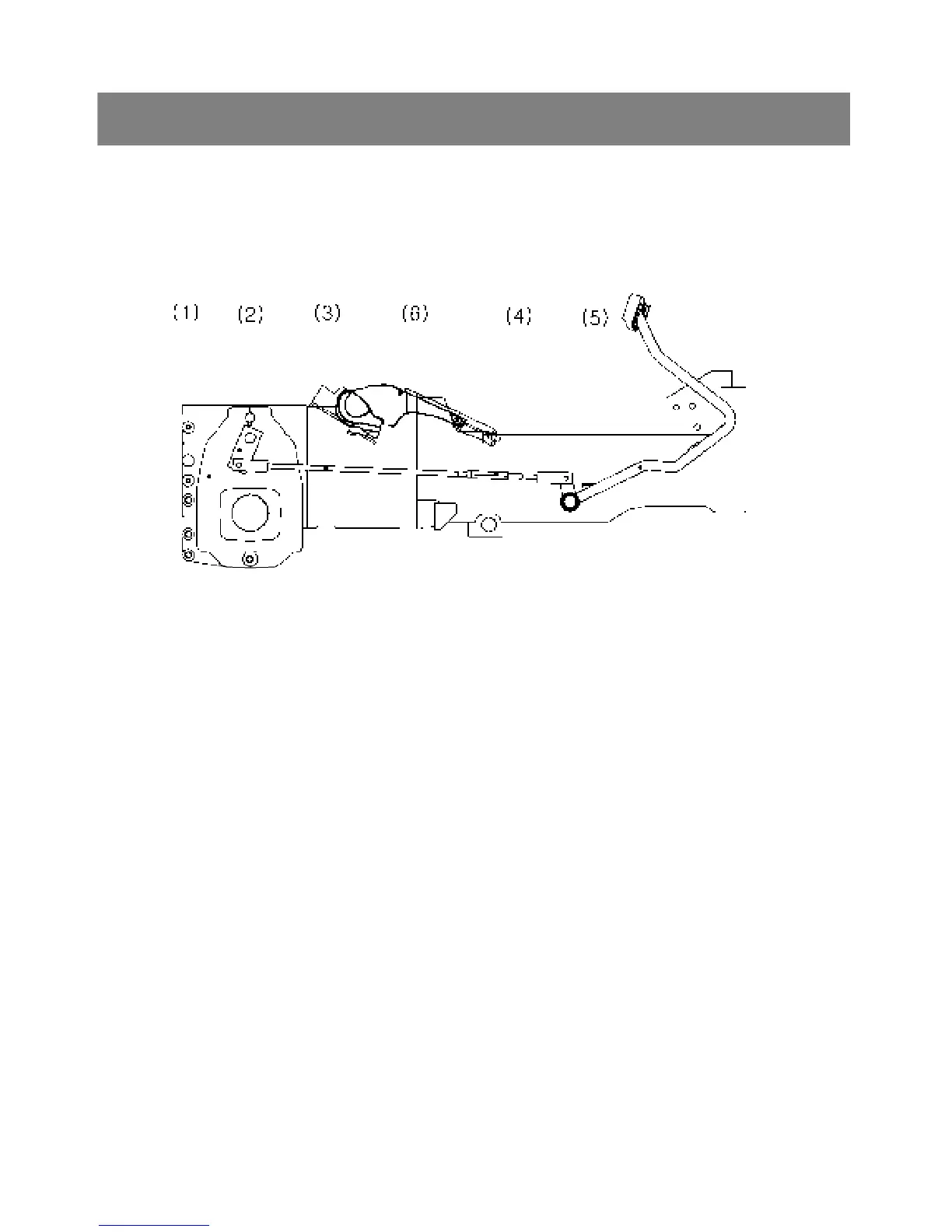

1. LINKAGE
1) Rear Axle Case 2) Brake Cam Lever 3) Brake Rod
4) Turnbuckle 5) Brake Pedal 6) Side Brake Lever
Independent mechanical wet disc brakes are used for the right and left brakes. They are operated by the
brake pedals through the mechanical linkages and provide stable braking and require little adjustment.
The parking brake is a mechanical type which is designed to actuate the traveling brakes through the
linkages. Pulling the parking brake lever(6) results in the same state as the obtained when the brake pedals
are pressed.
