HYDRAULIC SYSTEM
KUKJE MACHINERY CO., LTD.
133
1. STRUCTURE
<2> AUXILIARY HYDRAULICS

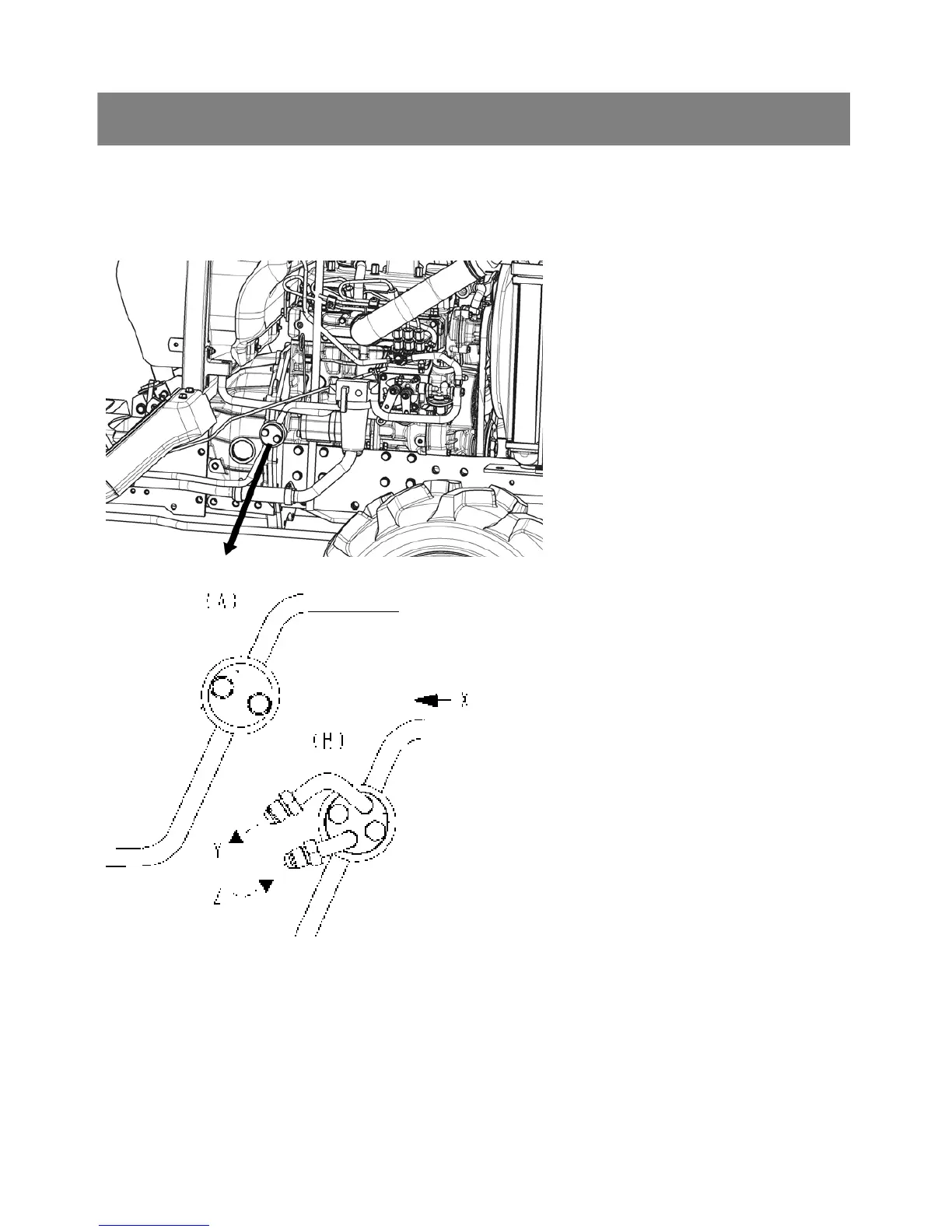

1) Hydraulic Block Type Outlet
*. PART NAME
1) Block cover
2) Block outlet cover (option)
3) Outlet 4) Inlet
5) Hydraulic block
(A) : When implement is not attached
(B) : When implement is attached
X : From gear pump
Y : To implement inlet
Max. flow : 17.1L/min (4.5 U.S.gals/min)
No relief valve in the hydraulic block
Z : From implement outlet
The hydraulic block type outlet is located at the right hand side of the engine.
This hydraulic block type outlet is provided to take power out from the tractor to operate the hydraulic
cylinders on the implement, such as front end loader, front blade and so on.
