HYDRAULIC SYSTEM
KUKJE MACHINERY CO., LTD.
132
1. STRUCTURE

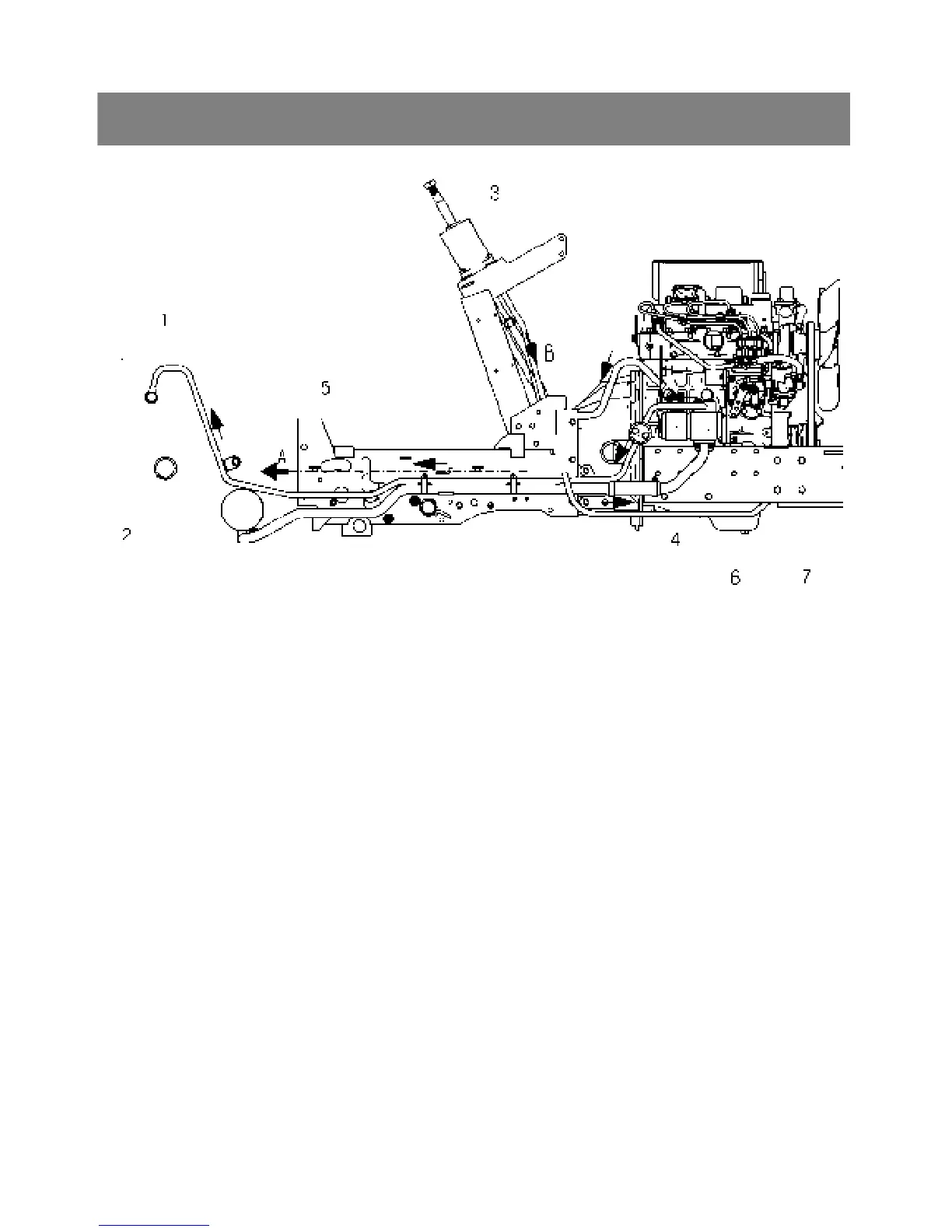

2) HST Transmission, Power Steering, Position Control Valve
1) Position control valve 2) Rear hydraulic outlet 3) Power steering (Controller)
4) Hydraulic block type outlet 5) Oil filter 6) Hydraulic pump (for power steering)
7) Hydraulic pump (for 3-point hitch) 8) Hydraulic cylinder 9) Lowering speed adjusting valve
10) Relief valve
A : To transmission case B : To clutch housing (Front transmission)
