HYDRAULIC SYSTEM
KUKJE MACHINERY CO., LTD.
131
1. STRUCTURE
<1> HYDRAULIC CIRCUIT
1) Manual Transmission, Power Steering, Control valve

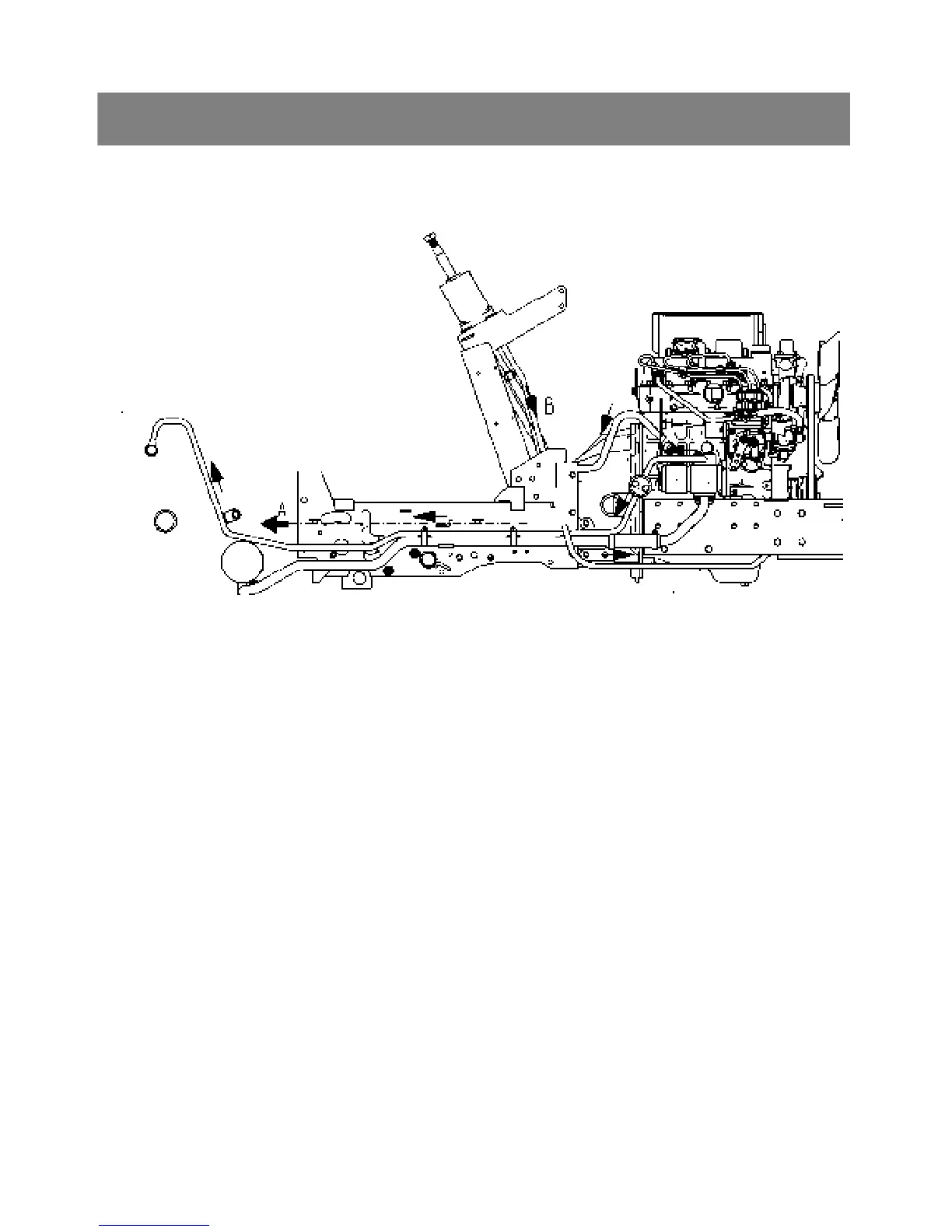

1) Hydraulic control valve 2) Oil filter 3) Power steering (Controller)
4) Hydraulic pump
(for 3-point hitch)
5) Hydraulic pump
(for power steering)
6) Hydraulic block type outlet
7) Relief valve 8) Hydraulic cylinder 9) Lowering speed adjusting valve
A : To transmission case B : To clutch housing (Front transmission)
