HYDRAULIC SYSTEM
KUKJE MACHINERY CO., LTD.
145
4. CHECKING, DISASSEMBLING AND SERVICING
<2> DISASSEMBLING AND ASSEMBLING
1) Power Steering Body
*. PART NAME
1) Steering column

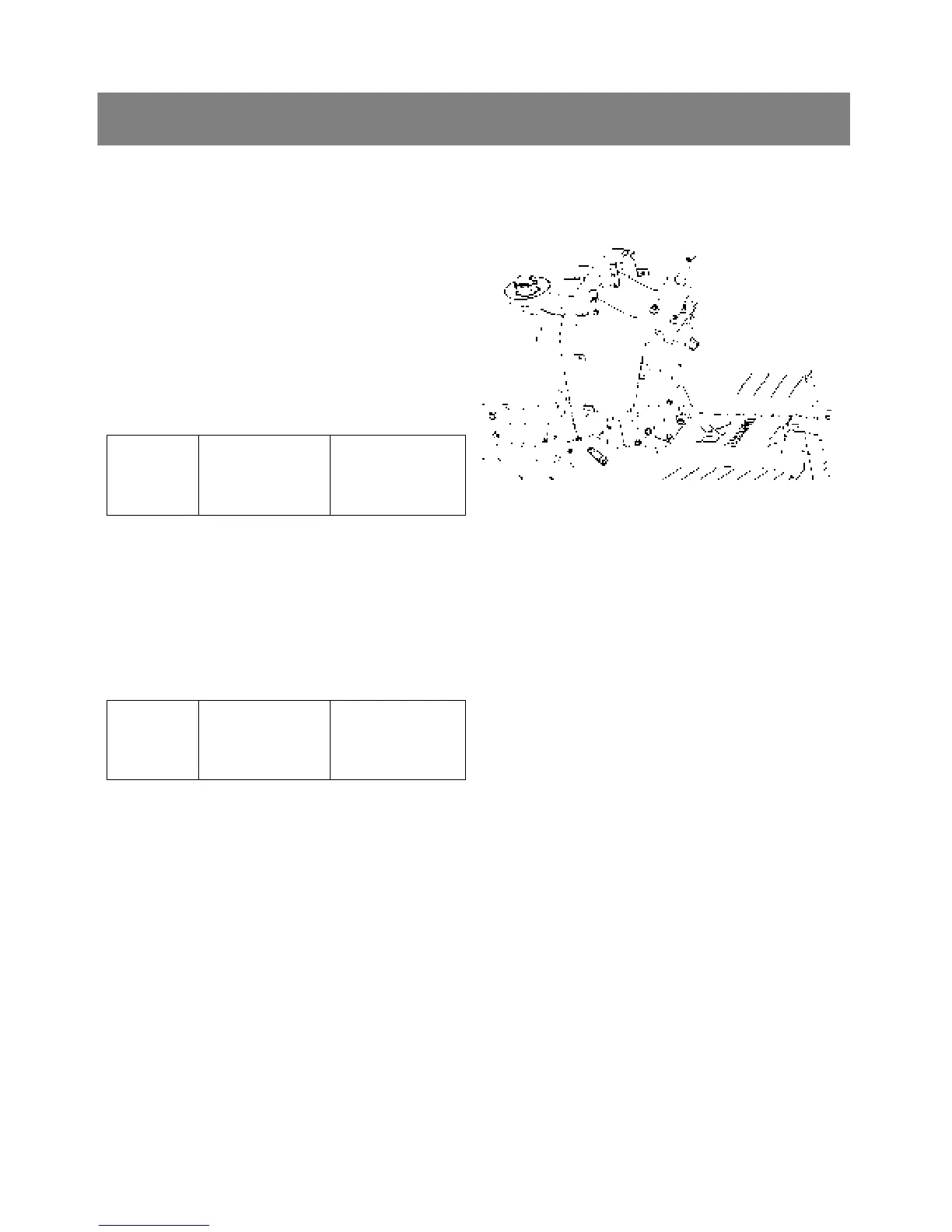

< Steering column >
1. Turn the steering shaft several times to drain oil.
2. Loose the steering column mounting screws, and
remove the steering column with steering shaft
and universal joint.
▷ Reassembling
9 Apply liquid lock to the steering column
mounting screw.
Tightening
torque
Steering column
mounting screw
48.1 Nm
4.9 kgfm
35.4 ft-lbs
< Valve assembly >
1. Remove the valve housing mounting hex. Head
screws.
2. Draw out the valve assembly.
▷ Reassembling
Tightening
torque
Valve housing
mounting hex.
head screw.
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
To Next Page
