REAR AXLE
KUKJE MACHINERY CO., LTD.
105

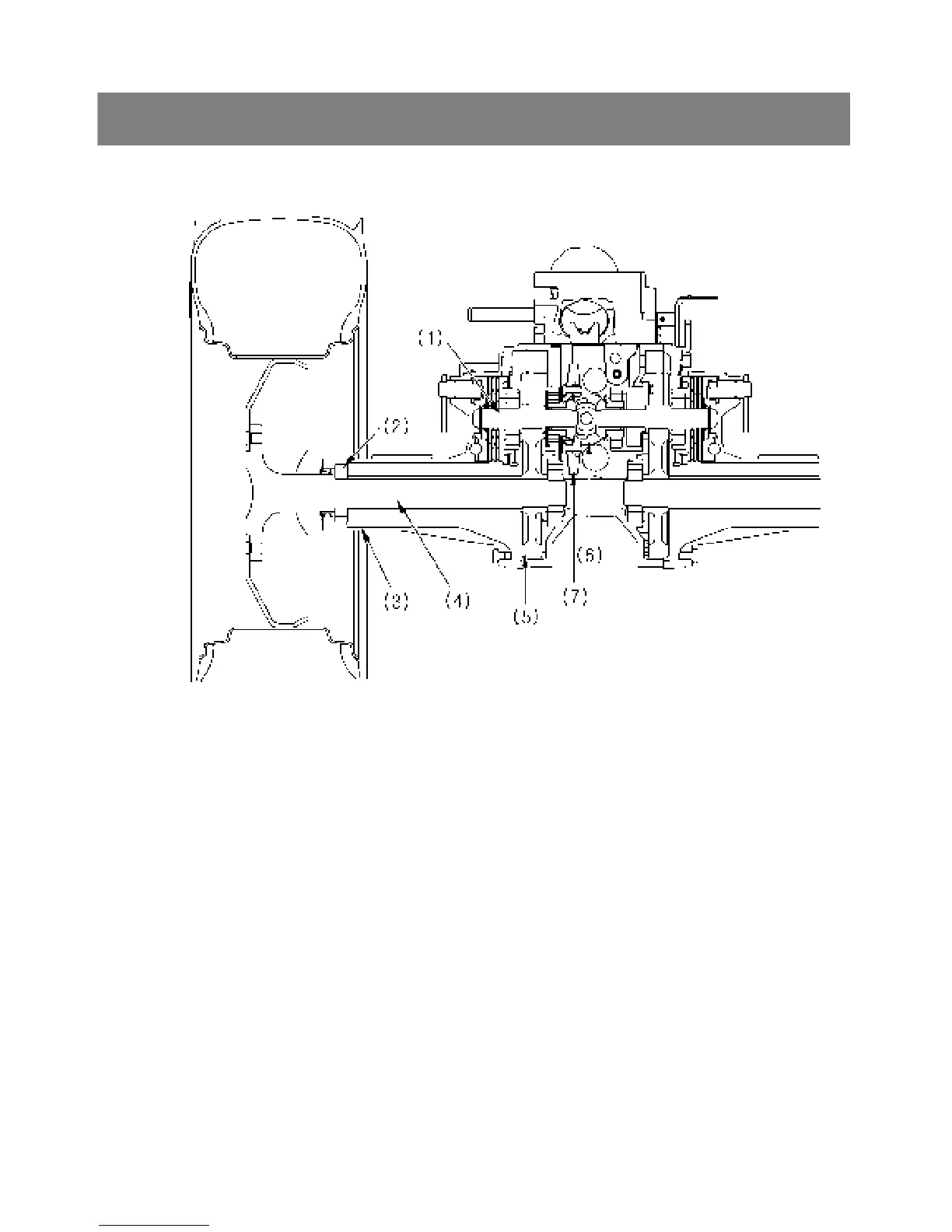

1. STRUCTURE
1) Differential Gear Shaft 2) Ball Bearing 3) Rear Axle Case
4) Rear Axle 5) Spur Gear 6) Differential Gear
7) Spiral Bevel Gear
The rear axles are the rigid type with ball bearings(2) between the rear axle(4) and the rear axle case(3),
which supports the rear wheel load as well as transmitting power to the rear wheels.
The differential gears(6) automatically control the revolution of the right and left wheels when the rear
wheels encounter unequal resistance during turning.
