Bredal F4 - Fast Emptying Procedure; Accessing Fast Emptying Menu; Initiating Fast Emptying

72 pages

Save Page as PDF

To Next Page

To Previous Page

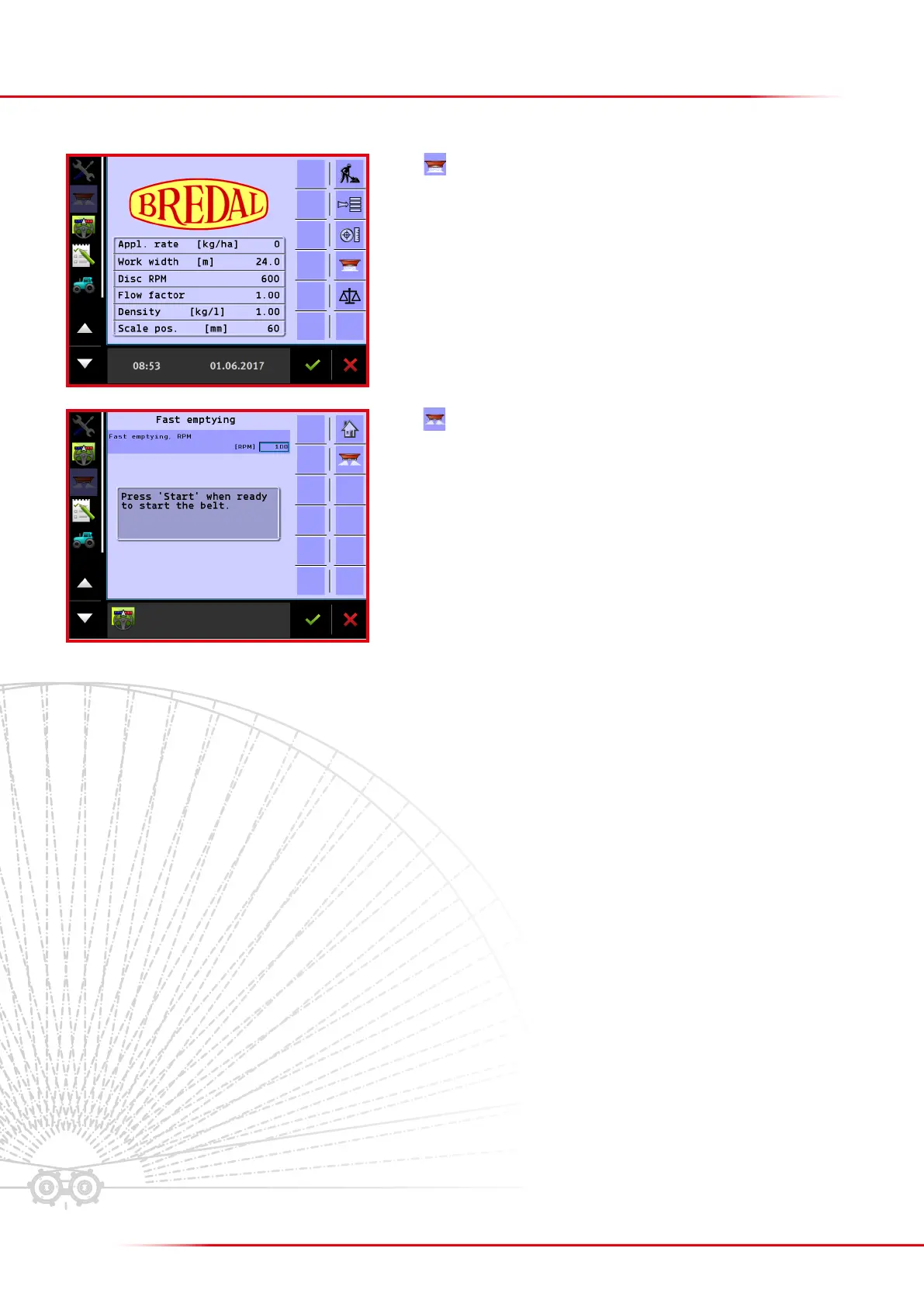

Press

on the Home menu.

FAST EMPTYING

Press to start emptying. It is possible to change the oor belts’ speed

by pressing the rpm and entering a dierent value.
