Bredal F4 - V-Belt Replacement Procedure; Winding Belt Around Pulley 1; Guiding Belt Around Pulley 2

72 pages

Save Page as PDF

To Next Page

To Previous Page

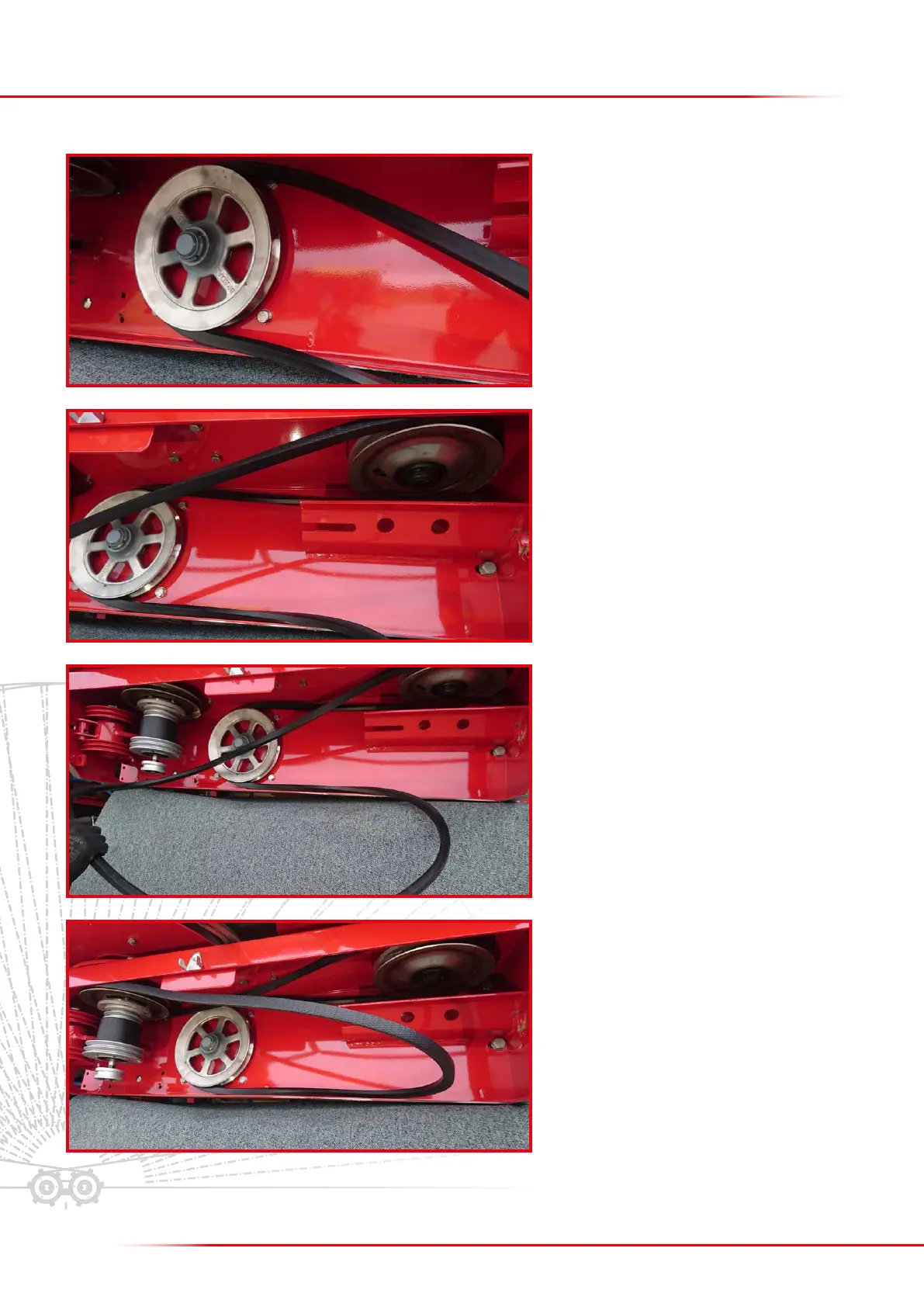

First wind the belt around pulley 1.

Twist the belt half a turn.

Wind the belt around the pulley on the headland gear.

Twist the top of the belt on pulley 1 and lead it behind

pulley 2.
