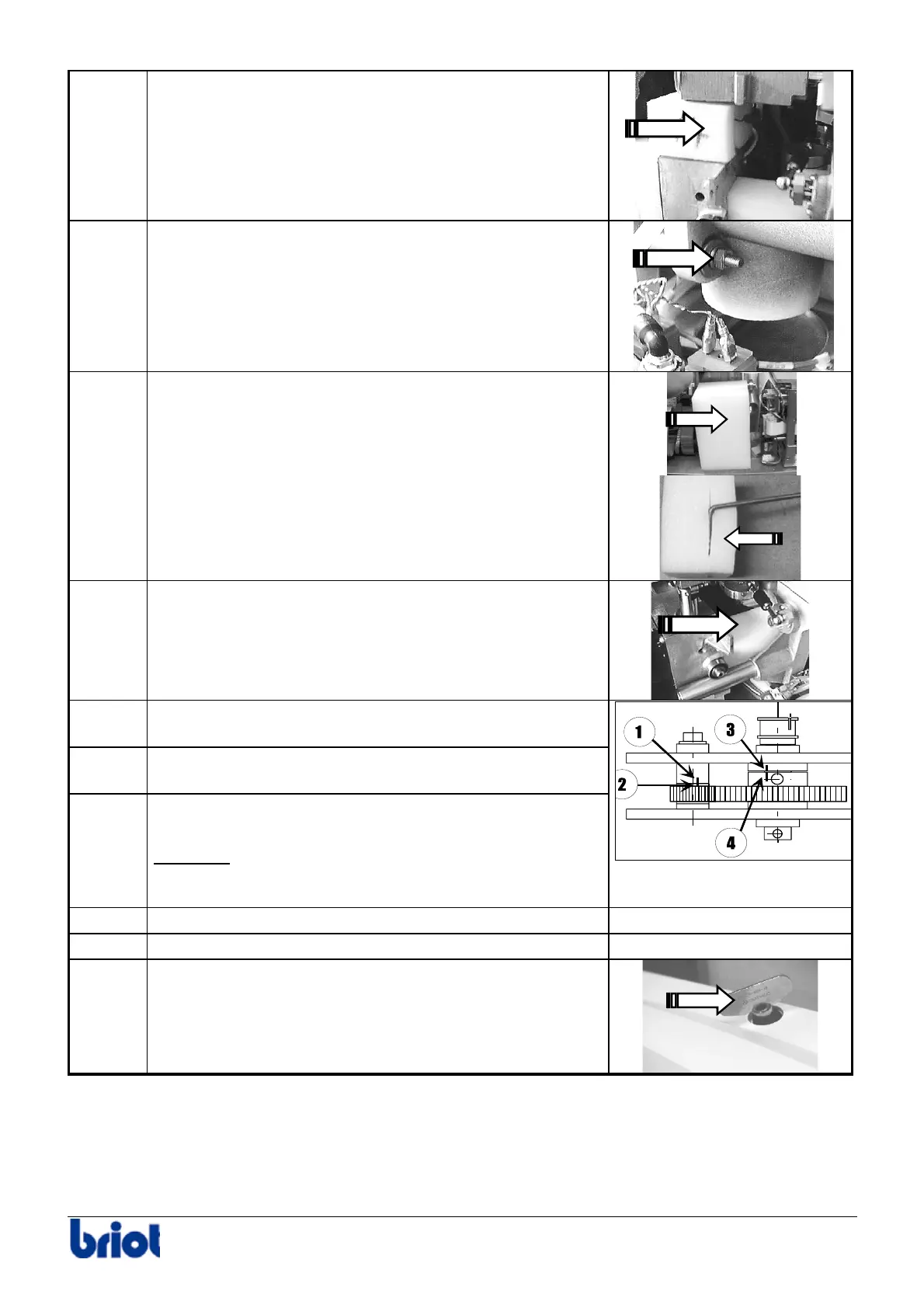

Installation / Starting
Installation / Starting 9
8
Remove the wedge from the top of the lifting jack.
9
Loosen and remove the nut and the two washers of the
threaded rod coming from the left of lifting jack.
10
Remove the lifting jack wedge and its rod inserted in
the translation tube.
11
Remove the wedge located between the safety-bevel
motor and the edging chamber.
12
Remove the cap located at the rear of the machine in
order to get access to the screw concerned.
13
Bring the carriage on the extreme left side (Operator
located behind the machine).
14
Check the set screw of the gear A is lined up with the
hole. If not, turn the gear in order to get to this situation.
Important
: before tightening the screw,
the 3&4 marks on the large gear must be lined up
(make several turns if needed).
15
Put a 2-mm Allen wrench into the screw.
-
16
Tighten the screw well.
-
17
Put back the edger cover guard, by using the key
contained in accessory box.
