Briot Silver - Tracing a frame shape

Use: Standard use
Silver FC 00 511 25
Tracing a frame shape
Procedure

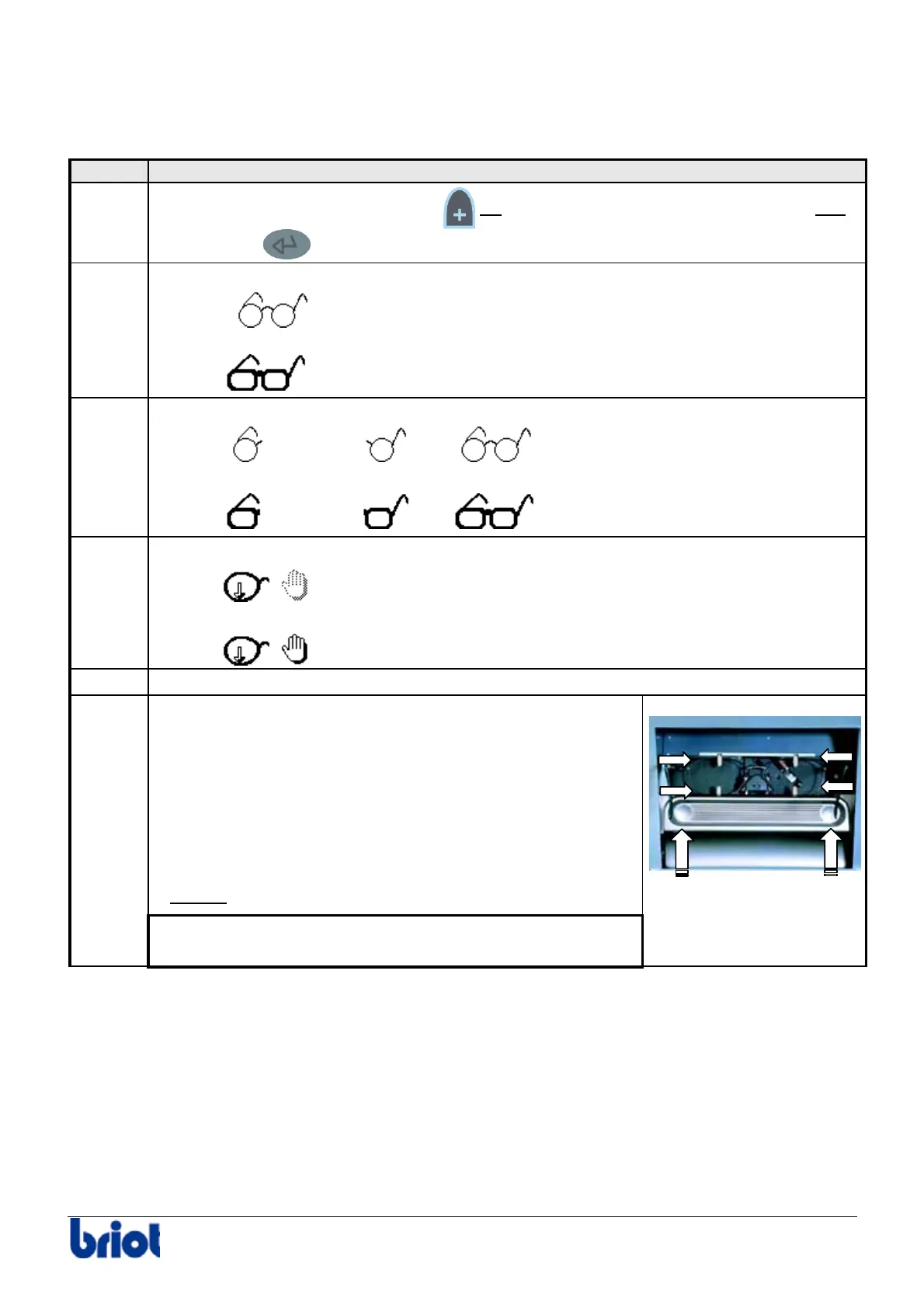

Follow the steps below to trace a frame shape.
Step Action
1
Create a job number: press the key
or enter the job number using the keypad and
press the key
.
2
Select the type of frame using Fct1 :
•
Or
•
.
3
Select the side(s) to be traced using Fct2 :
•
, , or
Or
•
, , or
4
Select the tracing type using Fct5 :
•
Or
•
5
Before tracing, clean the frame in the ultrasonic cleaner.
Insert the frame into the Scanform™ as follows:
• bring the jaw-opening plate towards you and keep
the jaws in the open position;
• place the top of the frame in the upper clips of the
Scanform™;
• push back the plate and let it go off making sure
that the bottom of the frame is placed between the
lower clips;
Result:
the frame is held.
6
Make sure that the joints of the eye wires to be traced are
properly closed.
