Briot Silver - Installing the Recirculating System; Warning; Procedure; Illustration

Annex A - Operation in recirculating mode
Silver FC 00 511 A - 3
Installing the recirculating system
WARNING
Only pumps that comply with the relevant safety requirements are permitted:
• 115 V/230 V: Voltage of pump outlet
• Power available for the pump: 350 W.
• Mandatory marking CE standard EN 60 335-1 and EN 60 335-2-41
• Thermal protection presence
• IP 68
PROCEDURE
Follow the steps below to install a recirculating system.
Step Action
1 Place system assembly under workbench.
2 Connect the main water supply pipe to the edger.
To do this, consult the following diagram.
3 Connect the pump to the edger, using the power supply cord.
4 Fill the recirculating tank with water 3/4 full.
5 Start the machine without a lens to prime the pump.
ILLUSTRATION

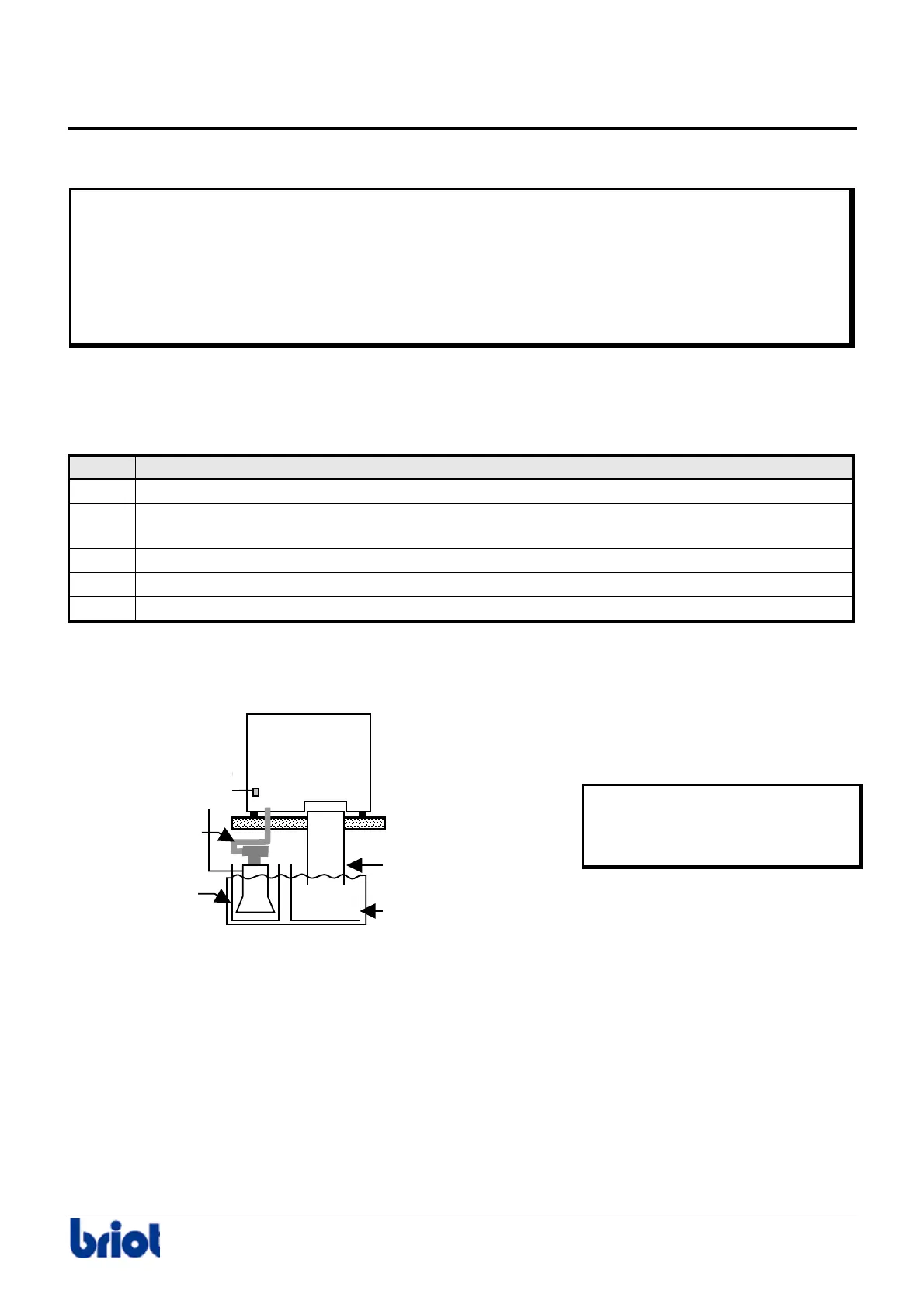

The following diagram shows the installation of your recirculating system.
Do not mount the joint filter on
the water supply in the case of
a recirculating system.
Edger
(front view)
R
accordement
électrique
Adduction
d’eau
Filtre
pompe
Evacuation d’eau
Décantation/filtre
Electrical connection
Water supply
Pump filter
Water outlet
Decantation/filter
