LAYING OUT AND BLOCKING A LENS
Lay-out/Blocking Mode

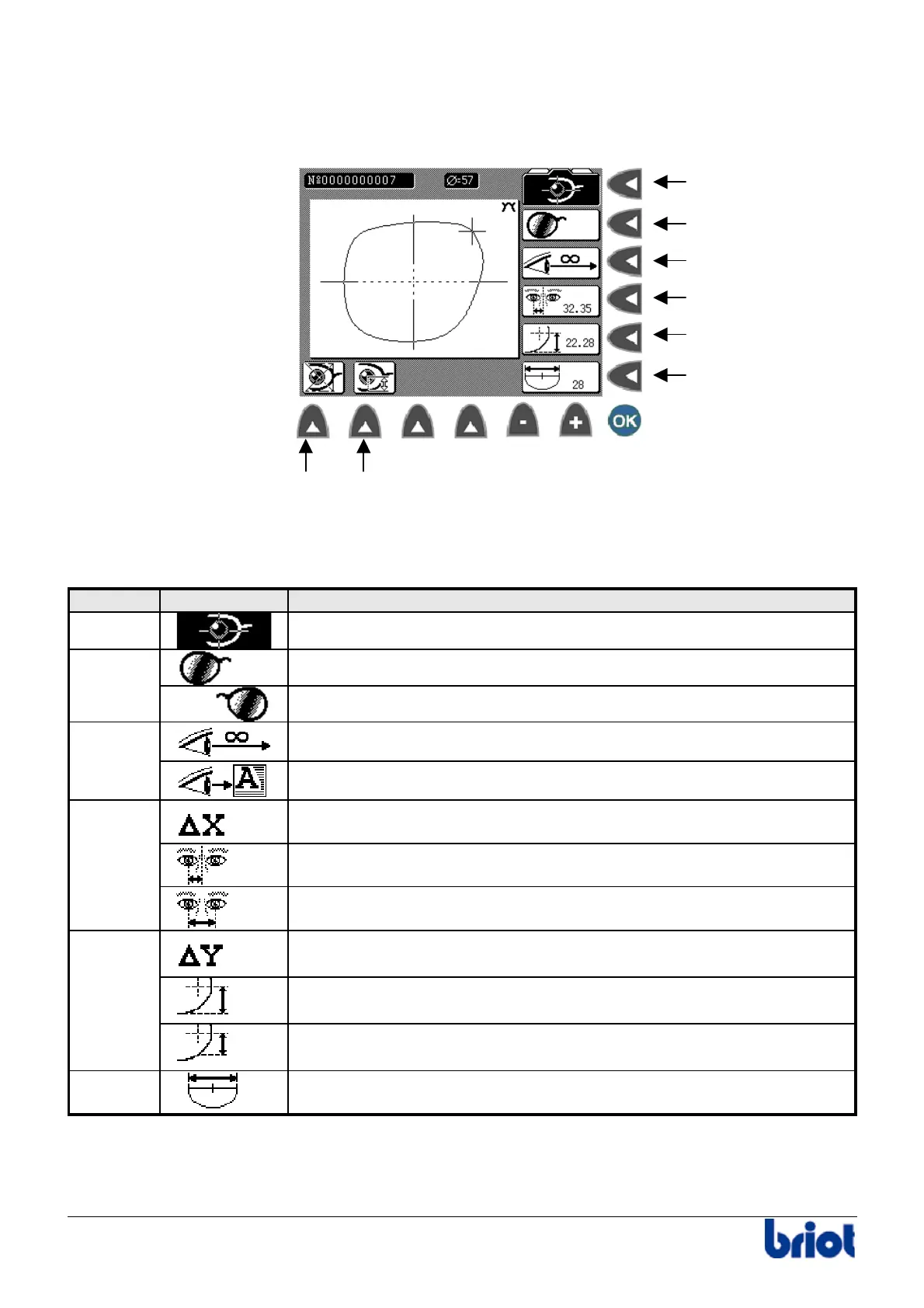

Functions : illustration
Functions: description
The following table describes each function of the Silver lay-out/blocking screen.
Function Selection Description
Fct0
Lay-out/Blocking Mode
Lay-out/Blocking of the right side
Fct1
Lay-out/Blocking of the left side
Distance vision
Fct2
Near Vision (for multifocals)
+06.00
Horizontal movement from the boxing center in millimeters
+30.00
Monocular Pupil Distance
Fct3
+62.00
Binocular Pupil Distance
+05.00
Vertical movement from the boxing center in millimeters: A vertical
decentration height from the boxing center
+28.00
BOX height: From the pupil center to the lowest vertical point of the
lens, at the bottom of the frame.
Fct4
+25.00
MIX height: From the pupil center to the first vertical point located on
the edge and in the lower part of the lens.
Fct5
28
Segment width
Fct 0
Fct 1
Fct 2
Fct 3
Fct 4
Fct 5
Fct 6 Fct 7
