Broadcom BCM7405 - Figure 1-50: Clock-To-Data Timing; HDMI and DVO; Table 1-35: Nominal DVO Output Propagation Delays

2/24/2008 9T6WP
Preliminary Hardware Data Module BCM7405
06/29/07 Timing and AC Characteristics
Broadcom Corporation
Document 7405-1HDM00-R HDMI and DVO Page 1-165
HDMI AND DVO

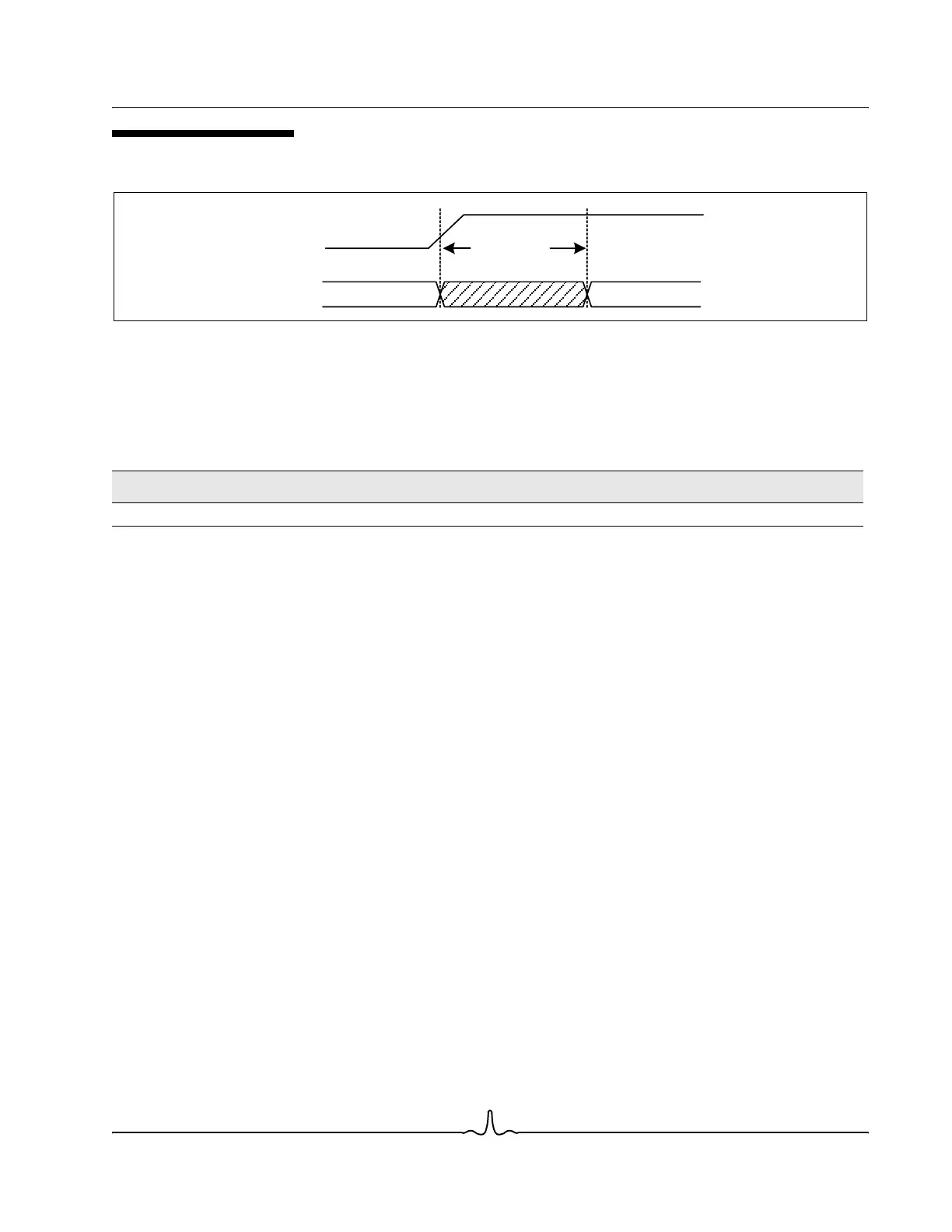

Figure 1-50: Clock-to-Data Timing
The configuration values used to adjust the skew settings are all in the HDMI_MISC_CONTROL registers. Refer to the
BCM7038 Programmer’s Register Reference Guide for more details.
Table 1-35: Nominal DVO Output Propagation Delays
t
pd
Min (ns) t
pd
Max (ns)
12-bit Mode 0.0 2.0
pd
clkp
data/ctl
t
