Broadcom BCM7405 - Figure 1-54: 976-FCBGA+HS Package (with Heat Sink); Mechanical Drawings

2/24/2008 9T6WP
BCM7405 Preliminary Hardware Data Module
Mechanical Characteristics 06/29/07
Broadcom Corporation
Page 1-176 Mechanical Drawings Document 7405-1HDM00-R
MECHANICAL DRAWINGS

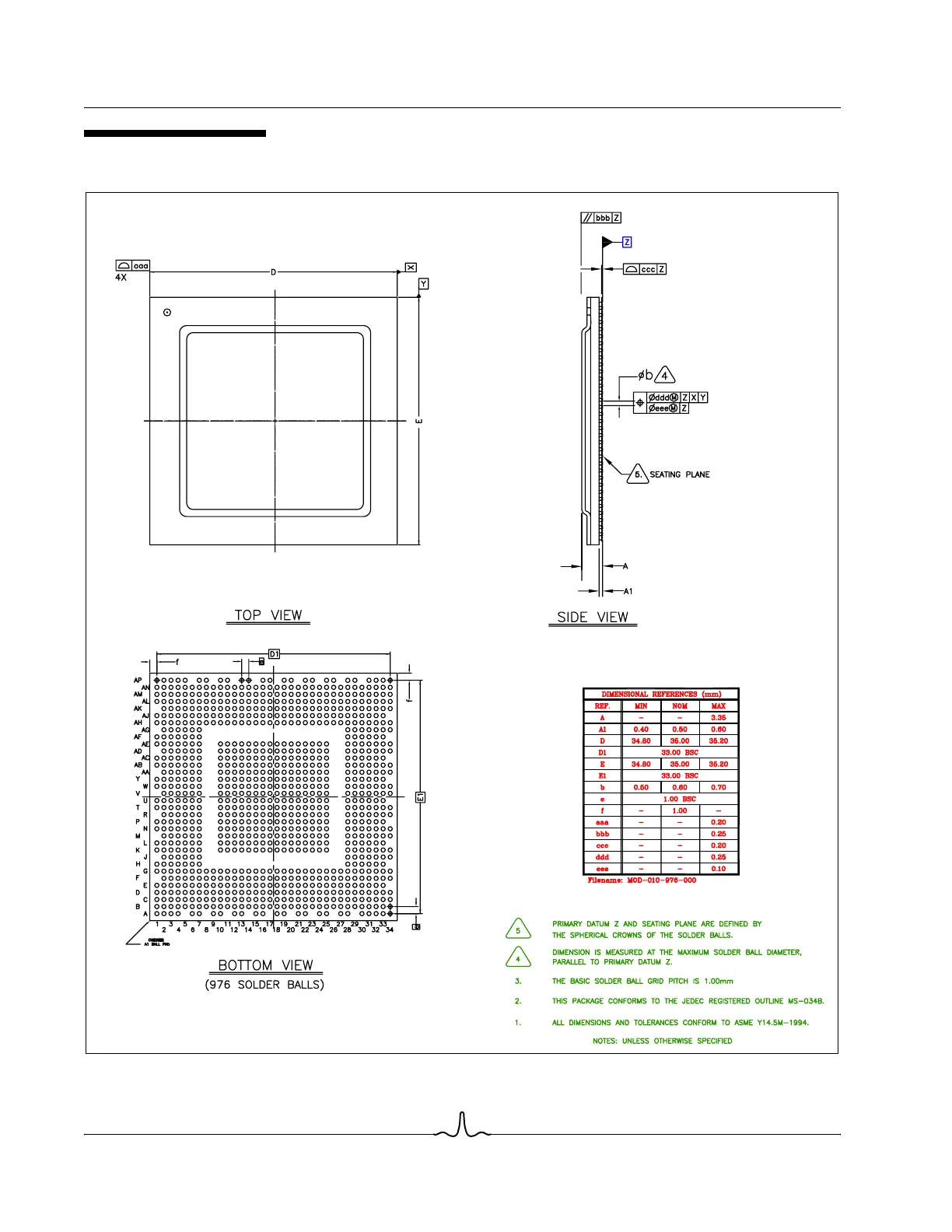

Figure 1-54: 976-FCBGA+HS Package (With Heat Sink)
