Mounting Brocade MLXe-4, -8, or -16 routers in a 4-post rack or cabinet
2

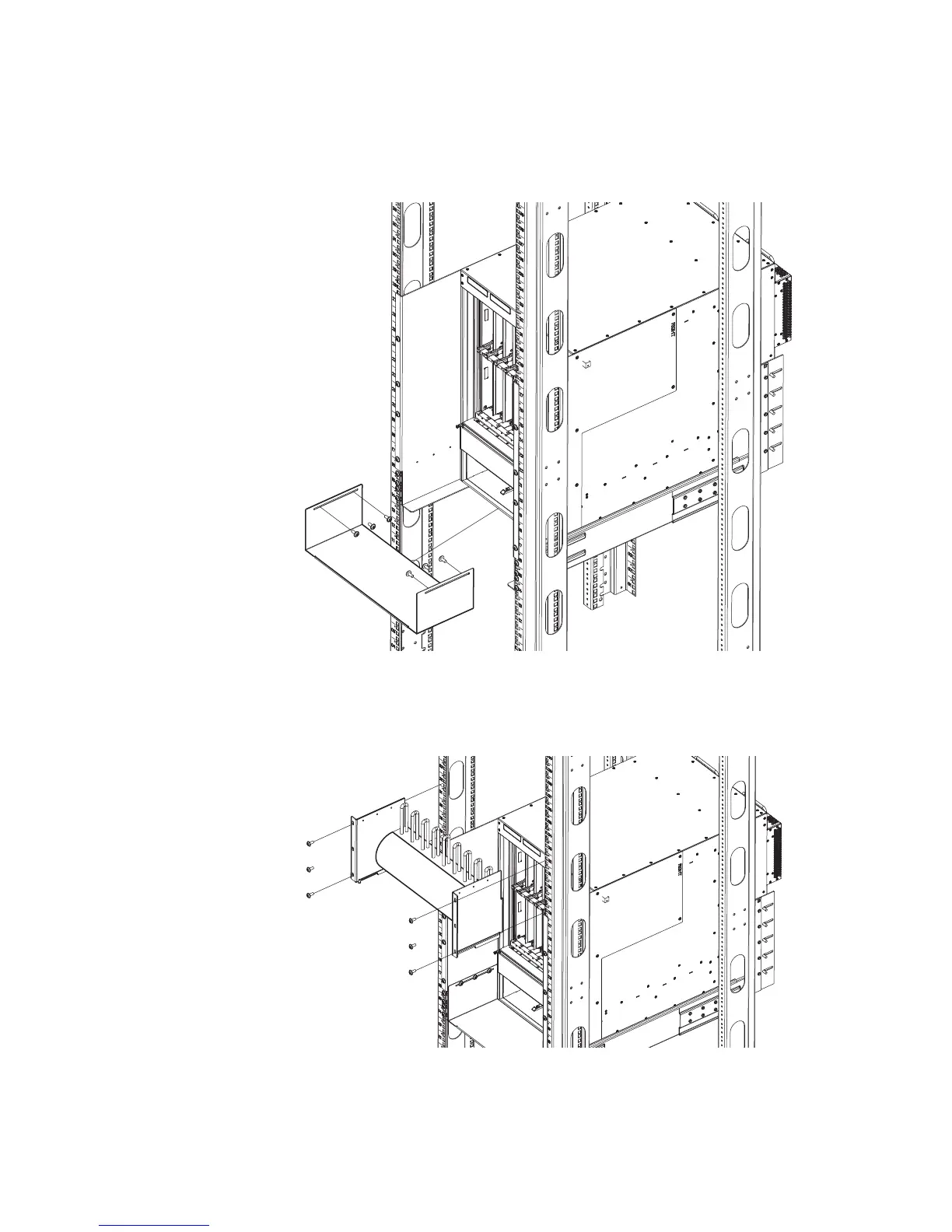

7. Attach the air block bracket to the front of the cabinet. Refer to Figure 76.
FIGURE 76 Install the air block bracket
8. Attach the cable management comb. Refer to Figure 77. For cable management instructions,
refer to “Brocade MLXe-32 cable management” on page 126.
FIGURE 77 Attach the cable management comb
• Repeat steps 1 through 9 for each router you install in the cabinet.
