222 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide53-1002373-02
Installing a Brocade MLX-32 router
3

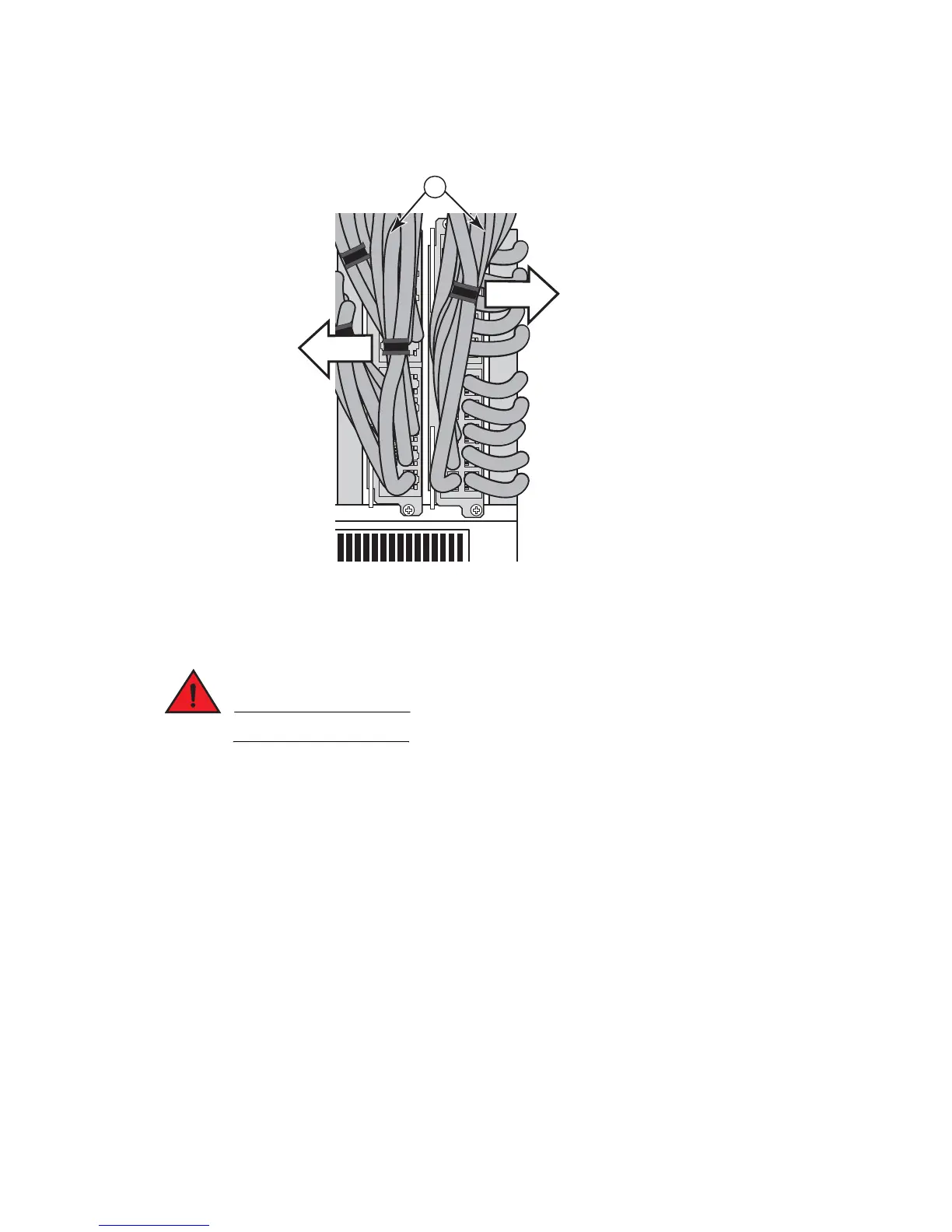

FIGURE 158 Accessing modules by shifting cable bundles
Installing power supplies in a Brocade MLX-32 router
DANGER
High Touch Current. Earth connection is essential before connecting supply.
Follow these steps to install a power supply in a Brocade MLX-32 router.
1. Remove the blank power supply faceplate.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides on each side of the slot.
1 Cable bundles
1
