304 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide
53-1002373-02
mRJ21 procedures
5

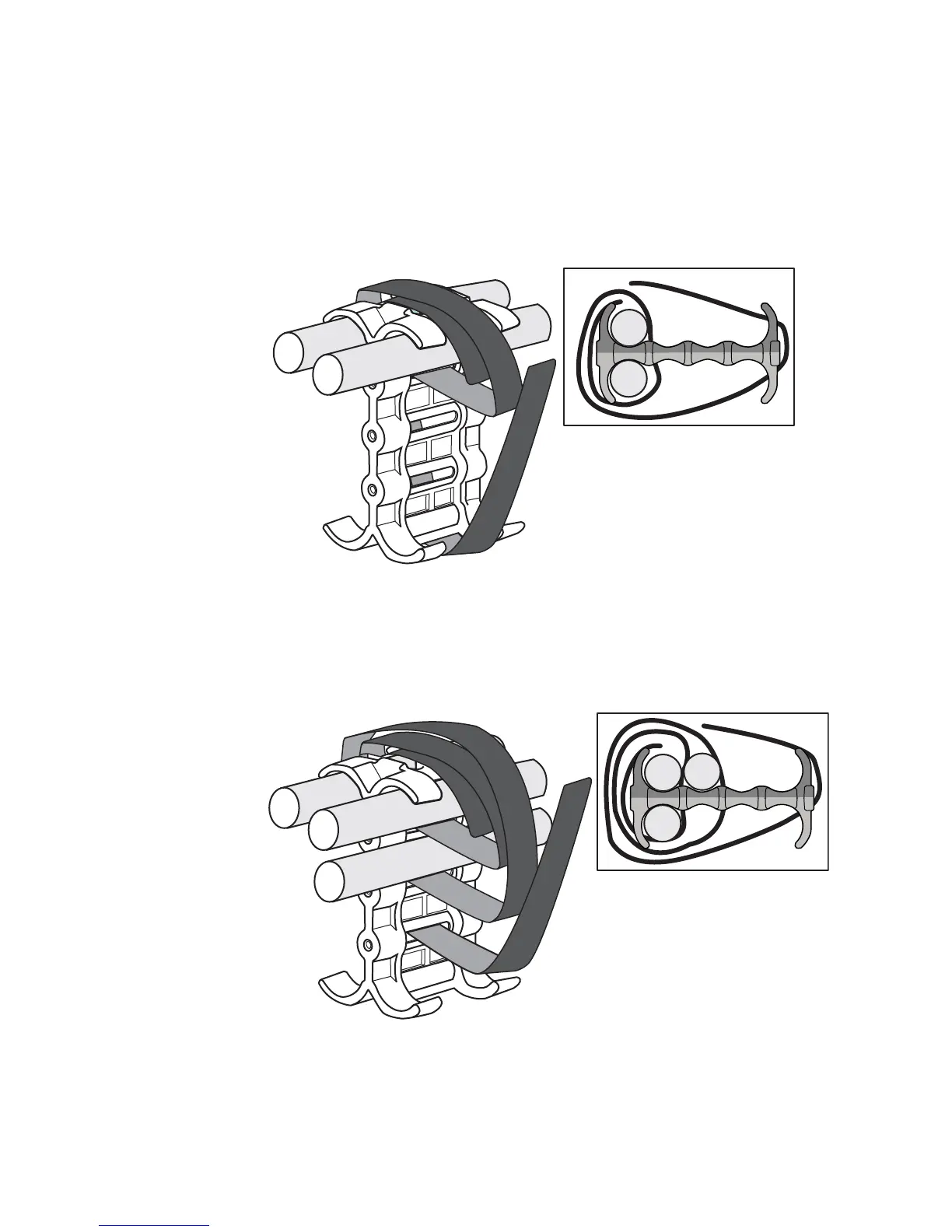

Cable cinch with two mRJ21 cables
To secure two mRJ21 cables, place the Velcro strap through slot one and use the front and rear left
recesses as shown in Figure 212.
FIGURE 212 Two mRJ21 cables
T
Cable cinch with three mRJ21 cables
Three mRJ21 cables may be secured as shown in Figure 213.
FIGURE 213 Three mRJ21 cables
