306 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide

53-1002373-02

mRJ21 procedures

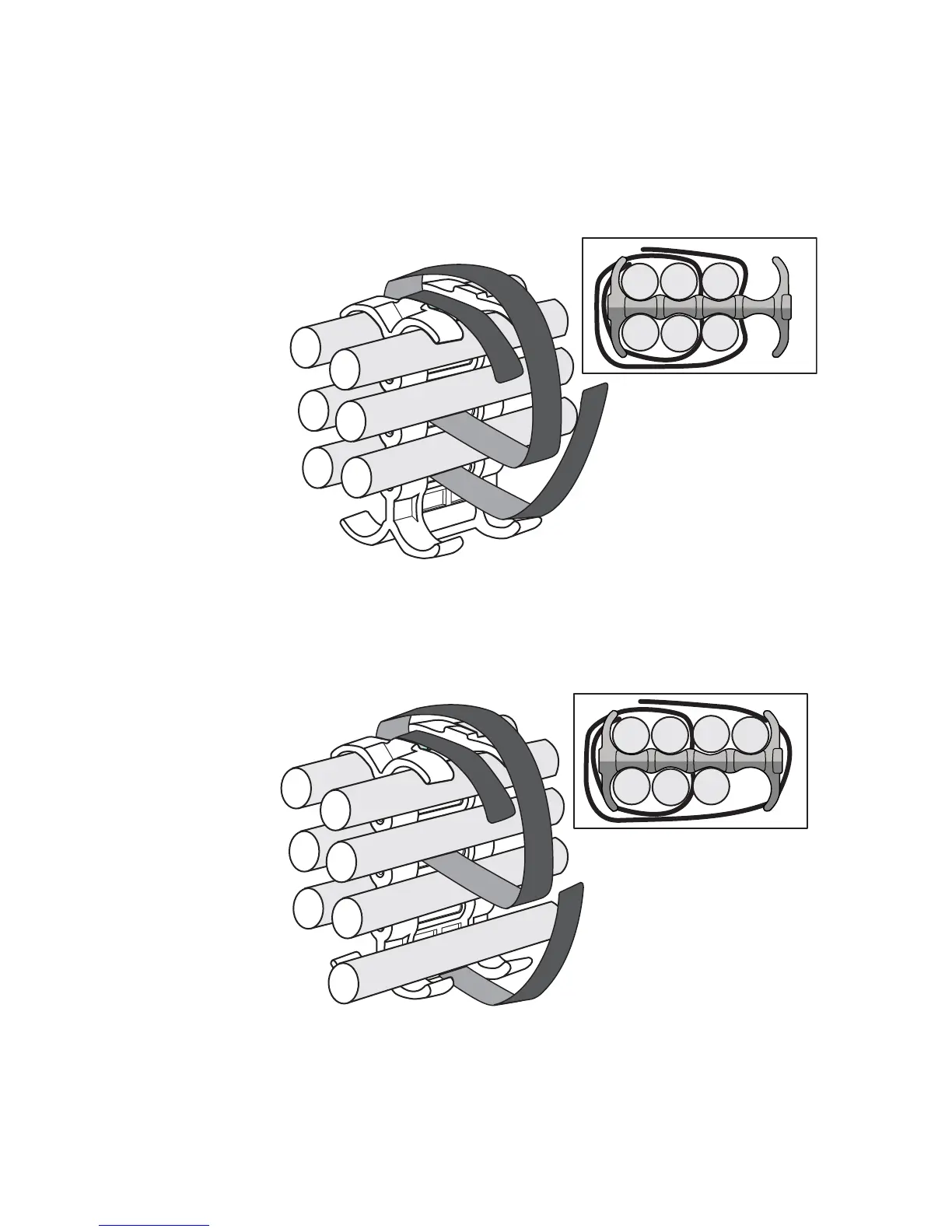

Cable cinch with six mRJ21 cables

Six mRJ21 cables may be secured as shown in Figure 216.

FIGURE 216 Six mRJ21 cables

Cable cinch with seven mRJ21 cables

Seven mRJ21 cables may be secured as shown in Figure 217.

FIGURE 217 Seven mRJ21 cables
