Installing a Brocade NetIron XMR 16000 router
4

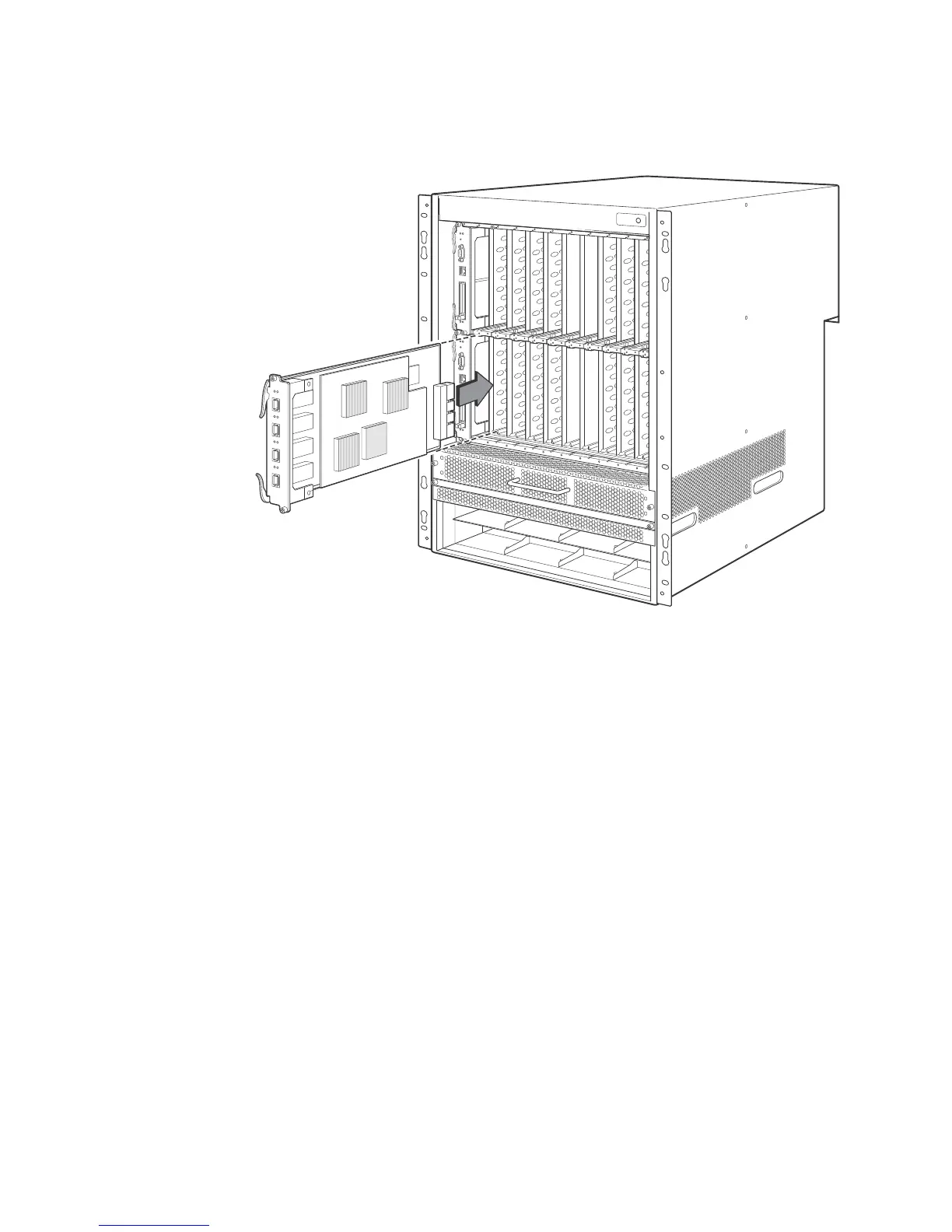

FIGURE 186 Installing a module in the Brocade NetIron XMR 16000 router
5. Tighten the screws at each end of the module faceplate by pushing them in and turning them
clockwise. Complete the tightening process using the flat-blade screwdriver.
Installing power supplies in a Brocade NetIron XMR 16000 router
This section describes how to install power supplies in the Brocade NetIron XMR 16000 router.
Follow these steps to install a power supply in a Brocade NetIron XMR 16000 router.
1. Remove the power supply slot blank.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides on each side of the slot. Refer to
1Interface module
