Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 13
53-1002373-02
Hardware features
1
Brocade NetIron XMR routers
Brocade NetIron XMR Series routers are available in the following models:
• Brocade NetIron XMR 4000: 4 interface slots (see Figure 9 on page 13).
• Brocade NetIron XMR 8000: 8 interface slots (see Figure 10 on page 14).
• Brocade NetIron XMR 16000: 16 interface slots (see Figure 11 on page 15).
• Brocade NetIron XMR 32000: 32 interface slots (see Figure 12 on page 16).
The following sections described the components you can install in the router slots. For a detailed
list of components that ships with each router, refer to >>>>>>>>>>.
Brocade NetIron XMR 4000 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to three switch fabric modules.
• Up to four interface modules.
• Up to three power supplies (AC or DC).
Figure 9 displays the Brocade NetIron XMR 4000 router.

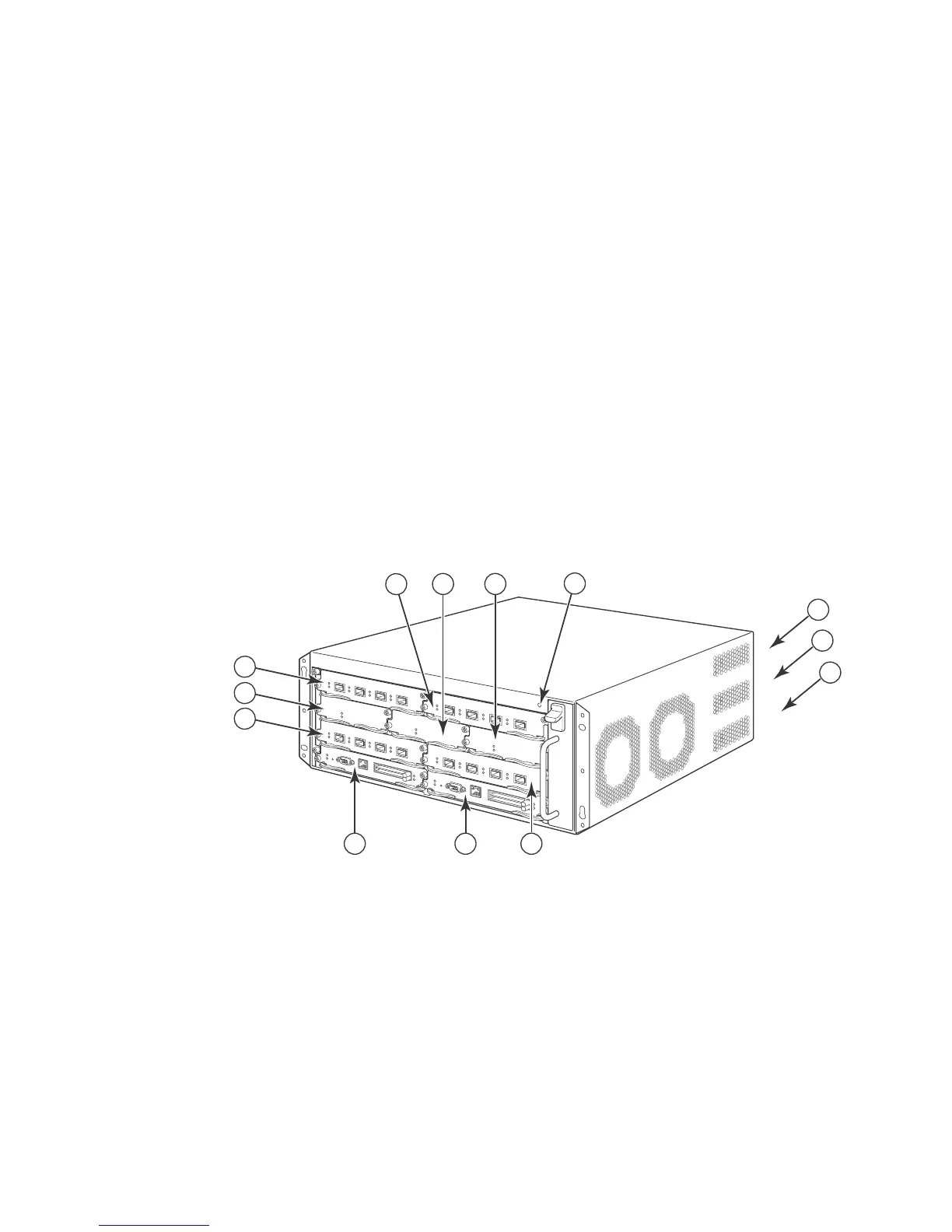

FIGURE 9 Brocade NetIron XMR 4000 router
1 Interface slot 2 4 ESD connector 7 Interface slot 3 10 Interface slot 4
2 Switch fabric slot 2 5 Interface slot 1 8 Management slot 1 11 -13 Three power supplies
installed in rear of
device
3 Switch fabric slot 3 6 Switch fabric slot 1 9 Management slot 2
7
6
5
1324
8910
11
12
13
