RJ45 procedures
5
Cable cinch with four groups of RJ45 cables
24 RJ45 cables, in four groups, may be secured as shown in Figure 222.

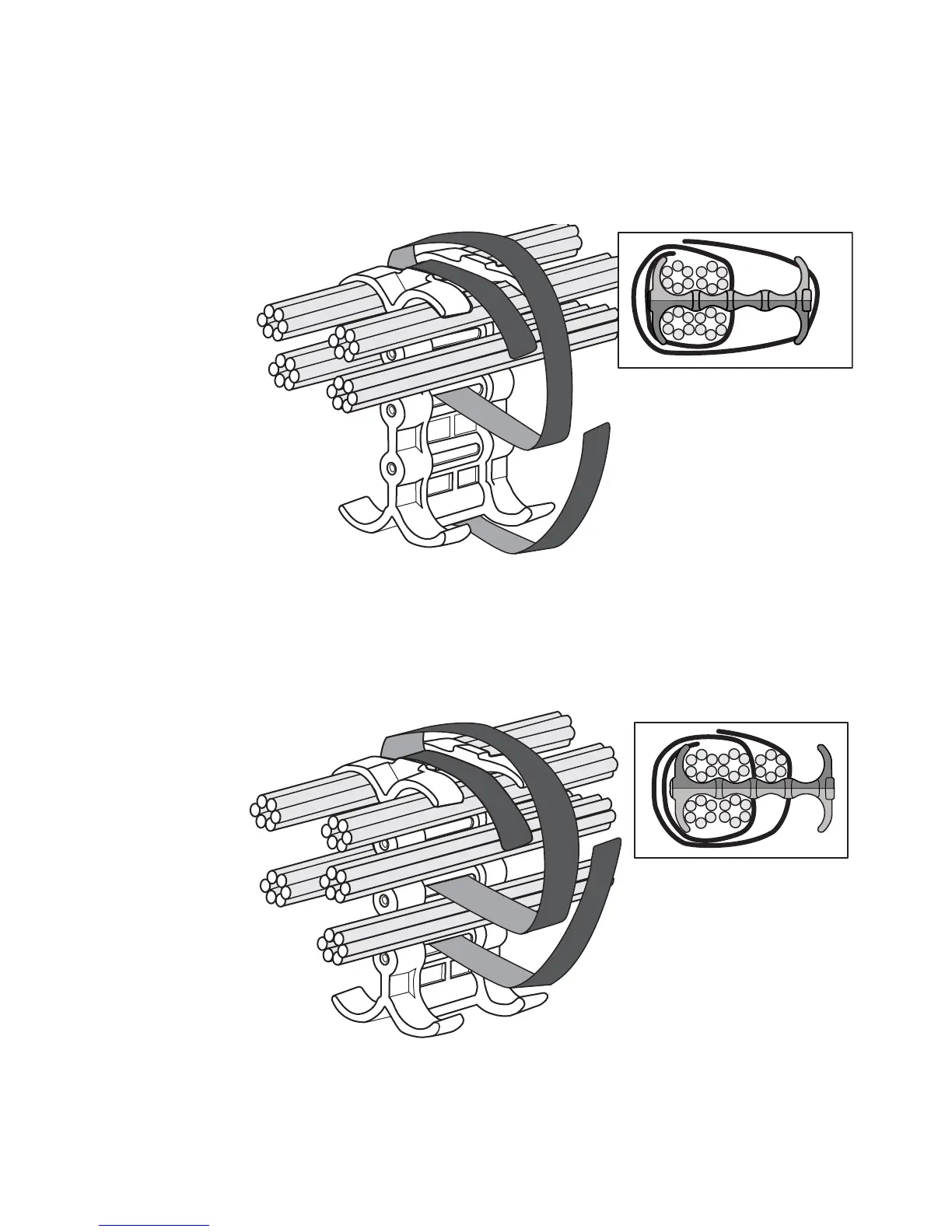

FIGURE 222 24 RJ45 cables in four groups
Cable cinch with five groups of RJ45 cables
30 RJ45 cables, in five groups, may be secured as shown in Figure 223.
FIGURE 223 30 RJ45 cables in five groups
