Cable cinch with two groups of RJ45 cables
12 RJ45 cables, in two groups, may be secured as shown in Figure 220.

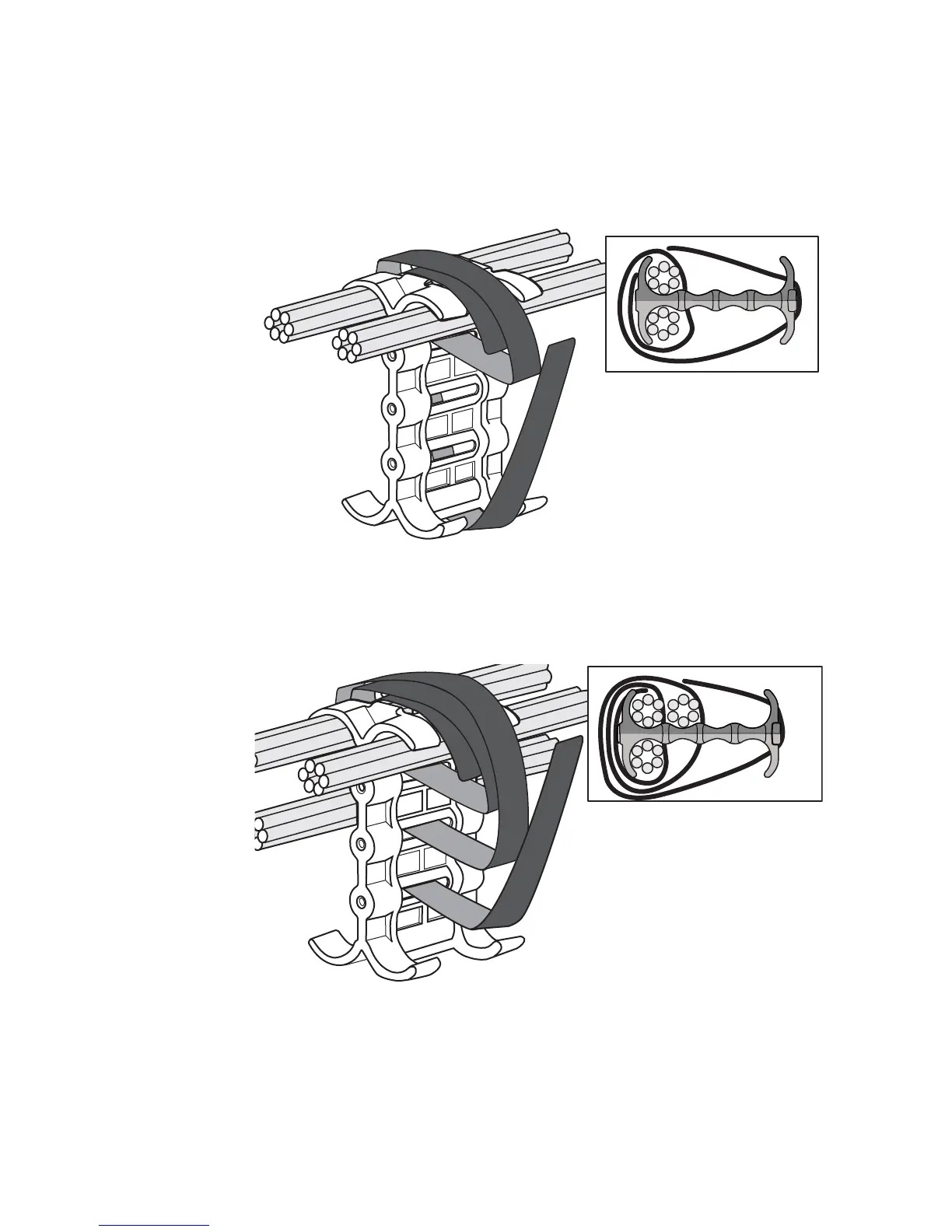

FIGURE 220 12 RJ45 cables in two groups
Cable cinch with three groups of RJ45 cables
18 RJ45 cables, in three groups, may be secured as shown in Figure 221.
FIGURE 221 18 RJ45 cables in three groups
